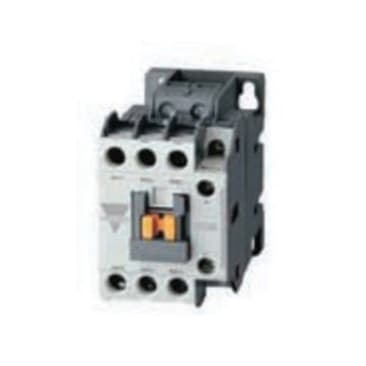

CARLO GAVAZZI CC22SA120 3P CONT S 120V 50/60HZ 1N01NC
MFR Part #:Â CC22SA120
SKU #:Â 1138225
Brand:Â Carlo Gavazzi
UPC:Â CC22SA120
Carlo Gavazzi CC22SA120 Magnetic Midi-Contactor, 690 VAC, 40 A, 15 kW, 120 VAC Coil, 1 ph -Phase
Product Details
Attributes
Resources
Carlo Gavazzi Magnetic Midi-Contactor, CC22 Series, 690 VAC, 40 A, 50/60 Hz, 15 kW, 120 VAC Coil, 1 ph Phase, 2 hp Coil, 3 Poles, Contact Configuration: 1NC-1NO, DIN Rail Mounting, 22AF Frame, Screw Terminal, 18 to 10 AWG Wire, 3000 m Operating Altitude, NEMA Rating: NEMA 1, IP Rating: IP20, -5 to 60 deg C, 73.5 mm Height, 45 mm Width, 86 mm Depth
Amperage Rating:
40 A
Coil Power Rating:
2 hp
Coil Voltage:
120 VAC
Contact Configuration:
1NC-1NO
Depth:
86 mm
Frame Size:
22AF
Frequency Rating:
50/60 Hz
Height:
73.5 mm
IP Rating:
IP20
Mounting Type:
DIN Rail
NEMA Rating:
NEMA 1
Number of Poles:
3
Operating Altitude:
3000 m
Phase:
1 ph
Power Rating:
15 kW
Temperature Rating:
-5 to 60 deg C
Terminal Type:
Screw
Voltage Rating:
690 VAC
Width:
45 mm
Wire Size:
18 to 10 AWG
Series:
CC22 Series
Product Details
Carlo Gavazzi Magnetic Midi-Contactor, CC22 Series, 690 VAC, 40 A, 50/60 Hz, 15 kW, 120 VAC Coil, 1 ph Phase, 2 hp Coil, 3 Poles, Contact Configuration: 1NC-1NO, DIN Rail Mounting, 22AF Frame, Screw Terminal, 18 to 10 AWG Wire, 3000 m Operating Altitude, NEMA Rating: NEMA 1, IP Rating: IP20, -5 to 60 deg C, 73.5 mm Height, 45 mm Width, 86 mm Depth
Attributes
Amperage Rating:Â 40 A
Coil Power Rating:Â 2 hp
Coil Voltage:Â 120 VAC
Contact Configuration:Â 1NC-1NO
Depth:Â 86 mm
Frame Size:Â 22AF
Frequency Rating:Â 50/60 Hz
Height:Â 73.5 mm
IP Rating:Â IP20
Mounting Type:Â DIN Rail
NEMA Rating:Â NEMA 1
Number of Poles:Â 3
Operating Altitude:Â 3000 m
Phase:Â 1 ph
Power Rating:Â 15 kW
Temperature Rating:Â -5 to 60 deg C
Terminal Type:Â Screw
Voltage Rating:Â 690 VAC
Width:Â 45 mm
Wire Size:Â 18 to 10 AWG
Series:Â CC22 Series
