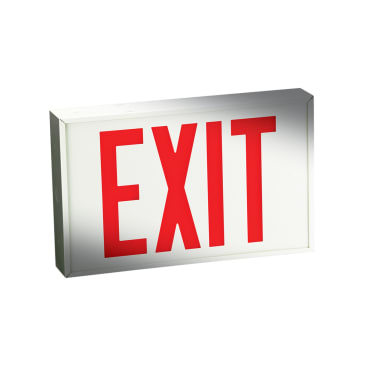

EMERGI-LITE EX10W-I Image 1
COO Canada

EMERGI-LITE EX10W-I UNIVERSAL (STEEL) C860 LED EXIT

MFR Part #: EX10W-I
SKU #: 1132993
Brand: ABB | Emergi-Lite®
UPC: 782683270146
Emergi-Lite® EX10W-I Universal Face Exit Sign, LED Lamp, <3 W Fixture, 120 to 347 VAC, Factory White Housing, EXIT Legend
(2) Stencil Plates, Red Diffusing Lens and Backplate
Commercial, Hospitality, Institutional and Industrial Applications
CSA 22.2 No. 141-10

Emergi-Lite® Exit Sign, Universal Face, Series: EX10, 120 to 347 VAC, <3 W Fixture, Legend: EXIT, LED Lamp, Surface Mounting, Ni-Cd Battery Power Source, Steel/Polycarbonate Housing Material, Factory White Housing Finish, 7-5/8 in H x 12-1/8 in W x 4-5/8 in D Dimensions

Supply and install the Emergi-Lite® EX10 series exit Signs. The equipment shall operate with universal 2-wire AC input voltage of 120 to 347 VAC at less than 1.5 W and universal 2-wire DC input voltage from 6 to 24 VDC at less than 1.5 W for single and double face signs. The sign shall be suitable for wall, end or ceiling mount. The faceplates shall be constructed of steel and shall come standard with knockout chevrons. The frame shall be of one-piece steel construction. The light source shall be light emitting diodes (LED). The LED lamps shall provide illumination in normal and emergency operation and shall be mounted inside the exit housing, not on the face. Red LEDs shall be of ALINGAP technology. An LED sensitive diffuser shall be mounted behind the legend to provide the 6 in H by 3/4 in stroke letters with even illumination. The exit sign in a self-powered configuration shall stay illuminated during emergency operation for at least 90 min upon AC failure.

Product Details

Emergi-Lite® Exit Sign, Universal Face, Series: EX10, 120 to 347 VAC, <3 W Fixture, Legend: EXIT, LED Lamp, Surface Mounting, Ni-Cd Battery Power Source, Steel/Polycarbonate Housing Material, Factory White Housing Finish, 7-5/8 in H x 12-1/8 in W x 4-5/8 in D Dimensions

Supply and install the Emergi-Lite® EX10 series exit Signs. The equipment shall operate with universal 2-wire AC input voltage of 120 to 347 VAC at less than 1.5 W and universal 2-wire DC input voltage from 6 to 24 VDC at less than 1.5 W for single and double face signs. The sign shall be suitable for wall, end or ceiling mount. The faceplates shall be constructed of steel and shall come standard with knockout chevrons. The frame shall be of one-piece steel construction. The light source shall be light emitting diodes (LED). The LED lamps shall provide illumination in normal and emergency operation and shall be mounted inside the exit housing, not on the face. Red LEDs shall be of ALINGAP technology. An LED sensitive diffuser shall be mounted behind the legend to provide the 6 in H by 3/4 in stroke letters with even illumination. The exit sign in a self-powered configuration shall stay illuminated during emergency operation for at least 90 min upon AC failure.

Attributes

Country Of OriginCanada
Dimensions7-5/8 in H x 12-1/8 in W x 4-5/8 in D
Fixture Wattage<3 W
Housing FinishFactory White
Housing MaterialSteel/Polycarbonate
Lamp TypeLED
LegendEXIT
Mounting TypeSurface
Power SourceNi-Cd Battery
SeriesEX10
TypeUniversal Face
Voltage Rating120 to 347 VAC

Features

  • Self powered, two-wire universal AC input
  • Pre assembled for quick, easy installation
  • Supplied with two stencil plates, red diffusing lenses and backplate
  • Easy access to wiring entry for all mounting options
  • Canopy mounting system designed specifically for ease of installation
  • Universal, field selectable chevrons (knockout)
  • Energy efficient consumes less than 2.5 W in AC mode and only 1 W in DC remote
  • Normal AC and emergency DC operation, 120 to 347 VAC input, 6 to 24 VDC input
  • Long life energy efficient ALINGAP technology LED light source
