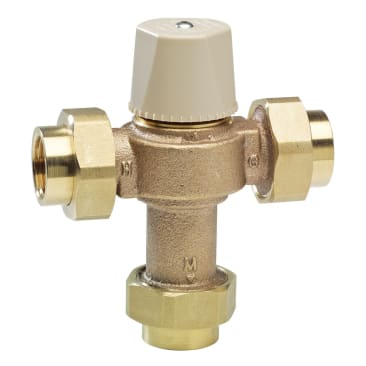

WATTS 0559116 LFMMV-UT-M1 1/2 IP 80-120F MIXING VALVE
Product Details
Attributes
Features
Resources
WATTS® Thermostatic Mixing Valve, Series: LFMMV, 1/2 in Nominal, Threaded Union, 150 psi, 200 deg F, 0.5 to 20 gpm Flow, Cast Copper Silicon Alloy Body, Buna-N®/EPDM O-Ring, 4-7/8 in W x 5-7/16 in H, Domestic
This 1/2 inch lead free thermostatic mixing valve is designed for residential, commercial or institutional environments for supplying baths or lavatories with tempered water. The double throttling design controls both hot and cold water supply to the mixed outlet. It consists of a lead free brass body, threaded union connections, solid wax hydraulic principle thermostat, integral filter washers and check valves with a locking mechanism for the temperature setting. The adjustable field range temperature at mixed outlet is 80 to 120 degrees F (27 to 49 degrees C). The maximum pressure rating is 150 psi (10.3 bar).
- Thermal actuation technology for precise temperature control
- Locking mechanism secures temperature setting
- Solid wax hydraulic principle thermostat assures dependable mixing of hot and cold water
- The wetted surface of this product contacted by consumable water contains less than one quarter of one percent (0.25%) of lead by weight
- Stainless steel disc and spring
- Polysulfone piston
- 25% maximum pressure differential between hot and cold water supplies
- Lead free brass construction
Product Details
WATTS® Thermostatic Mixing Valve, Series: LFMMV, 1/2 in Nominal, Threaded Union, 150 psi, 200 deg F, 0.5 to 20 gpm Flow, Cast Copper Silicon Alloy Body, Buna-N®/EPDM O-Ring, 4-7/8 in W x 5-7/16 in H, Domestic
This 1/2 inch lead free thermostatic mixing valve is designed for residential, commercial or institutional environments for supplying baths or lavatories with tempered water. The double throttling design controls both hot and cold water supply to the mixed outlet. It consists of a lead free brass body, threaded union connections, solid wax hydraulic principle thermostat, integral filter washers and check valves with a locking mechanism for the temperature setting. The adjustable field range temperature at mixed outlet is 80 to 120 degrees F (27 to 49 degrees C). The maximum pressure rating is 150 psi (10.3 bar).
Attributes
Features
- Thermal actuation technology for precise temperature control
- Locking mechanism secures temperature setting
- Solid wax hydraulic principle thermostat assures dependable mixing of hot and cold water
- The wetted surface of this product contacted by consumable water contains less than one quarter of one percent (0.25%) of lead by weight
- Stainless steel disc and spring
- Polysulfone piston
- 25% maximum pressure differential between hot and cold water supplies
- Lead free brass construction
