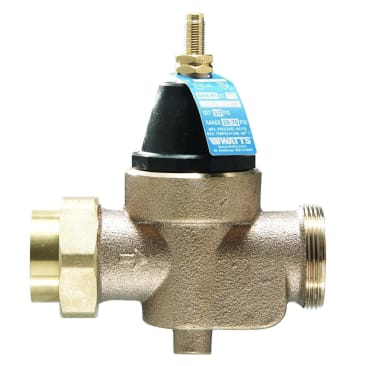

WATTS 0009471 LFN45BM1-U 1/2 IP UNION 25-75PSI PRESSURE REDUCING VALVE

WATTS®, 0009471, Pressure Reducing Valve, Standard Capacity, Series: LFN45B, 1/2 in Nominal, NPT Union Inlet x FNPT Outlet End Style, 25 to 75 psi Pressure, 33 to 180 deg F, Media: Water, 4-9/16 in Top to Inlet Center, Copper Silicon Alloy Body, Thermoplastic Seat/Reinforced EPDM Diaphragm Softgoods, Domestic

This 1/2 in water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a lead free cast copper silicon alloy construction, NPT threaded union inlet and FNPT outlet connection, stainless steel integral strainer, thermoplastic seat module, thermal expansion bypass and a sealed spring cage for waterworks pit installations. The temperature range is 33 to 180 deg F. Suitable for up to 400 psi, the pressure range can be adjusted from 25 to 75 psi with the standard setting at 50 psi.
