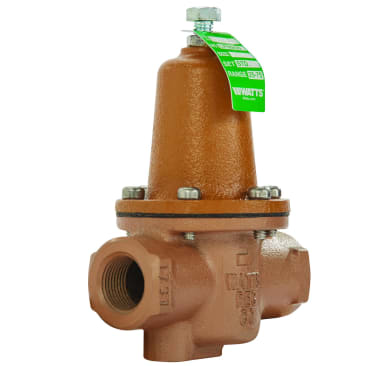

WATTS 0121241 LFN250B 1/2 IP 25-75PSI IRON BDY PRESSURE REDUCING VALVE WITH BYPASS
Product Details
Attributes
Features
Resources
WATTS® Pressure Reducing Valve, 1/2 in Nominal, FNPT, 25 to 75 psi, 33 to 160 deg F, Media: Water, 4 in Inlet to Outlet Length, 3-7/8 in Top to Inlet Center, Iron Body, Brass Trim, Domestic
This 1/2 inch lead free water pressure reducing valve is used in residential applications to reduce incoming domestic water pressure to protect plumbing components and reduce water consumption. It consists of a iron body with 1/2 inch NPT female inlet and outlet connections, stainless steel seat, integral strainer, and thermal expansion bypass feature. All parts are quickly and easily serviceable without removing the valve from the line. The reduced pressure is set at 50 psi (345 kPa) and maximum working pressure is 250 psi (17.2 bar).
- Integral stainless steel strainer
- Unitized construction for ease of maintenance
- All working parts easily and quickly serviceable without removing the valve from the line
- Bypass feature controls thermal expansion pressure
- High temperature resisting diaphragm for hot or cold water
Product Details
WATTS® Pressure Reducing Valve, 1/2 in Nominal, FNPT, 25 to 75 psi, 33 to 160 deg F, Media: Water, 4 in Inlet to Outlet Length, 3-7/8 in Top to Inlet Center, Iron Body, Brass Trim, Domestic
This 1/2 inch lead free water pressure reducing valve is used in residential applications to reduce incoming domestic water pressure to protect plumbing components and reduce water consumption. It consists of a iron body with 1/2 inch NPT female inlet and outlet connections, stainless steel seat, integral strainer, and thermal expansion bypass feature. All parts are quickly and easily serviceable without removing the valve from the line. The reduced pressure is set at 50 psi (345 kPa) and maximum working pressure is 250 psi (17.2 bar).
Attributes
Features
- Integral stainless steel strainer
- Unitized construction for ease of maintenance
- All working parts easily and quickly serviceable without removing the valve from the line
- Bypass feature controls thermal expansion pressure
- High temperature resisting diaphragm for hot or cold water
