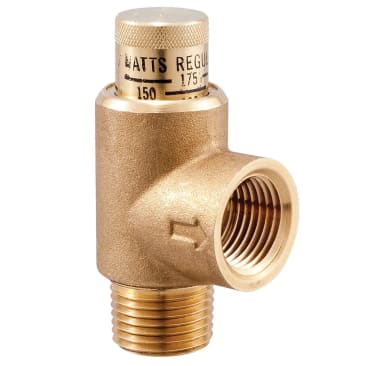

WATTS 0556035 LF530-C 1/2 IP 50-175PSI ADJUSTABLE PRESSURE RELIEF VALVE
Product Details
Attributes
Features
Resources
WATTS®, 0556035, Pressure Relief Valve, Calibrated, Series: LF530, 1/2 in Nominal, MNPT x FNPT End Style, 50 to 175 psi Pressure, Brass Body, Buna-N® Disc Softgoods, 1-5/8 in W x 3 in H Dimensions, Domestic
Series LF530C Lead Free* Calibrated Pressure Relief Valves are used in commercial, residential and industrial applications to protect against excessive pressure in systems containing water, oil, or air. It consists of a Lead Free* brass body construction with NPT threaded male inlet and NPT threaded female (drain) outlet connections, stainless steel spring, brass bonnet, Buna-N disc, and Buna-N O-ring. Series LF530C has a calibrated adjustment feature for setting the valve to the required relief pressure, and is ideal for by-pass thermal expansion pressure relief (not ASME approved). Maximum Pressure: 300psi (20.67 bar). Adjustable Pressure Ranges: Sizes 1/2, 3/4 in. - 50 to 175psi (3.45 to 12.06 bar), Size 3/4 in. - 100 to 300psi (6.89 to 20.67 bar).
- Protects against buildup of excessive pressure
- For use in systems containing water, oil, and air
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Inquire with governing authorities for local installation requirements
- Construction of these products does not meet the (ANSI Z21.22) nationally recognized applicable standard
- All stainless steel spring
- Maximum temperature 180 deg F
- Lead free brass body construction
Product Details
WATTS®, 0556035, Pressure Relief Valve, Calibrated, Series: LF530, 1/2 in Nominal, MNPT x FNPT End Style, 50 to 175 psi Pressure, Brass Body, Buna-N® Disc Softgoods, 1-5/8 in W x 3 in H Dimensions, Domestic
Series LF530C Lead Free* Calibrated Pressure Relief Valves are used in commercial, residential and industrial applications to protect against excessive pressure in systems containing water, oil, or air. It consists of a Lead Free* brass body construction with NPT threaded male inlet and NPT threaded female (drain) outlet connections, stainless steel spring, brass bonnet, Buna-N disc, and Buna-N O-ring. Series LF530C has a calibrated adjustment feature for setting the valve to the required relief pressure, and is ideal for by-pass thermal expansion pressure relief (not ASME approved). Maximum Pressure: 300psi (20.67 bar). Adjustable Pressure Ranges: Sizes 1/2, 3/4 in. - 50 to 175psi (3.45 to 12.06 bar), Size 3/4 in. - 100 to 300psi (6.89 to 20.67 bar).
Attributes
Features
- Protects against buildup of excessive pressure
- For use in systems containing water, oil, and air
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Inquire with governing authorities for local installation requirements
- Construction of these products does not meet the (ANSI Z21.22) nationally recognized applicable standard
- All stainless steel spring
- Maximum temperature 180 deg F
- Lead free brass body construction
