WATTS 0121582 LFWDS-E220 1 220VAC WATER SAFETY VALVE
Product Details
Attributes
Features
Resources
WATTS®, 0121582, Water Detector Shutoff, Series: LFWDS, 1 in Nominal, 150 psi Pressure, 220 VAC, 70 mA, Cast Copper Silicon Alloy Body, 210 deg F, Domestic

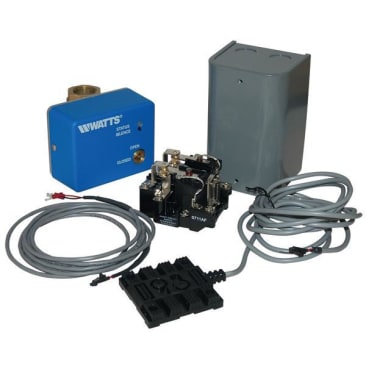

This FloodSafe® water detector shutoff protects the homeowner from catastrophic damage in the event of a water heater leak by using state of the art water detection technology. It detects the presence of water on the floor beneath the water heater and will automatically shut off the water supply and power source to the water heater. This 1 in safety valve detector is easily testable and resettable by the contractor or home owner to ensure proper operation. It consists of an integral control unit, a water dam, power supply, power cut-out module with electric 220 V pilot and water detection pad. An optional battery back-up maintains normal usage up to 3 days.
- Easily tested and reset to assure proper operation
- No terminals to corrode or to impair operation
- Provides contacts for monitored alarm detection systems
- Current draws 50 mA
- 60 Hz frequency
- The wetted surface of this product contacted by consumable water contains less than one quarter of one percent (0.25%) of lead by weight
- Water dam included for concrete, linoleum, tile, or other hard surfaces
