WATTS 0379112 LF777SI 3/4 IP BRASS Y-STRAINER
Product Details
Attributes
Features
Resources

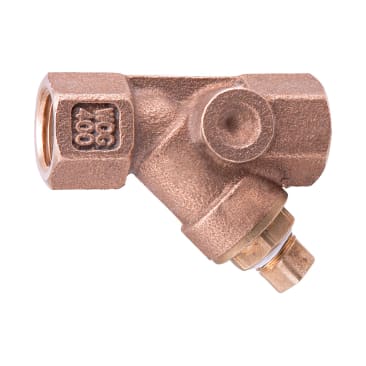

WATTS®, 0379112, Wye Strainer, Series: LF777SI, 3/4 in Nominal, 3-3/16 in Overall Length, FNPT Connection, 1/4 in NPT Blow-Off, EPDM Softgoods, Cast Copper Silicon Alloy Body, Import
Series LF777SI, LFS777SI Lead Free brass wye-pattern strainers feature a wye-pattern, lead Free brass body stainless steel screen and solid tapped retainer cap with NBR gasket. Model LF777SI comes with threaded connections and is available in sizes 3/8 to 3 in (10 to 80mm). Model LFS777SI comes with solder connections and is available in sizes 1/2 to 2 in. (15 to 50mm). Model LF777SI - maximum pressure (non shock): 400psi at 210 deg F WOG, 125 psi at 353 deg F WSP. Model LFS777SI - maximum pressure (non shock): 400 psi at 150 deg F 15 psi at 250 deg F WSP.
- Flared screen opening on upstream end provides unrestricted flow through the strainer
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Closure plug
Product Details
WATTS®, 0379112, Wye Strainer, Series: LF777SI, 3/4 in Nominal, 3-3/16 in Overall Length, FNPT Connection, 1/4 in NPT Blow-Off, EPDM Softgoods, Cast Copper Silicon Alloy Body, Import
Series LF777SI, LFS777SI Lead Free brass wye-pattern strainers feature a wye-pattern, lead Free brass body stainless steel screen and solid tapped retainer cap with NBR gasket. Model LF777SI comes with threaded connections and is available in sizes 3/8 to 3 in (10 to 80mm). Model LFS777SI comes with solder connections and is available in sizes 1/2 to 2 in. (15 to 50mm). Model LF777SI - maximum pressure (non shock): 400psi at 210 deg F WOG, 125 psi at 353 deg F WSP. Model LFS777SI - maximum pressure (non shock): 400 psi at 150 deg F 15 psi at 250 deg F WSP.
Attributes
Features
- Flared screen opening on upstream end provides unrestricted flow through the strainer
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Closure plug
