AO SMITH 100316738 HPTU-66N 66USG 4.5KW 208/240V 1PH WATER HEATER
MFR Part #: HPTU-66N
SKU #: 1132815
Brand: AO Smith®
UPC: 671657235161

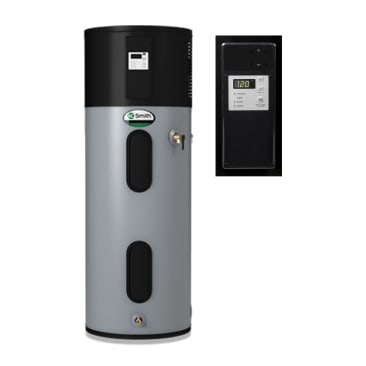

AO Smith® HPTU-66N Electric Heat Pump Water Heater, 66 gal, 4500 W
10 Year
AHRI Certified | ENERGY STAR Certified | LEED 2 | NEEA Certified | UL Listed
Product Details
Attributes
Features
Resources
AO Smith® Electric Heat Pump Water Heater, 66 gal Capacity, 4500 W, 79 gal First Hour Delivery, 3.45 Energy Factor, 30 A, 208/240 V, 60 Hz, 60 deg F, Stainless Steel, Finish: Glass, 27 in Dia x 61 in H
The Voltex® hybrid electric heat pump water heater lives up to its impressive reputation. The line has larger storage capacities, which means more energy stored, resulting in increased savings. The consumer friendly display is simple to operate and provides easy-to-understand feedback on operational status.
Amperage Rating:
30 A
Capacity:
66 gal
Dimensions:
27 in Dia x 61 in H
Energy Factor:
3.45
Finish:
Glass
First Hour Delivery:
79 gal
Frequency Rating:
60 Hz
Heating Capacity:
4.5 kW
Material:
Stainless Steel
Power Rating:
4500 W
Temperature Rating:
60 deg F
Voltage Rating:
208/240 V
Water Heater Type:
Electric
- Absorbs ambient heat from the surrounding air to heat water using a compressor and environmentally friendly R-134A refrigerant
- The self-contained heat pump unit is integrated into the top of the tank
- Multiple operating modes to maximize efficiency and performance
- Improved efficiency design to ensure available hot water at the lowest possible cost and up to a 3.45 uniform energy factor (EF) rating conserves energy and meets energy STAR® qualifications
- Select from efficiency, hybrid or electric modes to match heating requirements to environmental conditions
- Hybrid mode automatically adjusts between compressor and element, depending upon heat requirements
- Vacation mode reduces operating costs and provides freeze protection during extended absence
- Long-lasting backup heating elements help heat water according to environmental conditions, demand and the chosen operating mode
- Commercial-grade glass coating provides superior corrosion-resistance
- Temperature and pressure relief valve protects the tank against excessive temperature and pressure
- Permits installation in confined places and allow using cool air discharge for cooling other areas at home
- Control system checks to ensure the tank is full of water during start-up to prevent dry firing the heating elements
- User friendly electronic interface allows easy control of temperature setting, operating modes and communicates diagnostics
- Easy to read temperature display shows temperature in deg F or deg C
- The last four error messages are saved in the control system memory
- Dual anode rods with stainless steel cores allowing superior tank protection for much longer life
- Solid brass, tamper-resistant, ball type drain valve designed for easy operation
- Advanced diagnostics convey error messages for service purposes
Product Details
AO Smith® Electric Heat Pump Water Heater, 66 gal Capacity, 4500 W, 79 gal First Hour Delivery, 3.45 Energy Factor, 30 A, 208/240 V, 60 Hz, 60 deg F, Stainless Steel, Finish: Glass, 27 in Dia x 61 in H
The Voltex® hybrid electric heat pump water heater lives up to its impressive reputation. The line has larger storage capacities, which means more energy stored, resulting in increased savings. The consumer friendly display is simple to operate and provides easy-to-understand feedback on operational status.
Attributes
Amperage Rating: 30 A
Capacity: 66 gal
Dimensions: 27 in Dia x 61 in H
Energy Factor: 3.45
Finish: Glass
First Hour Delivery: 79 gal
Frequency Rating: 60 Hz
Heating Capacity: 4.5 kW
Material: Stainless Steel
Power Rating: 4500 W
Temperature Rating: 60 deg F
Voltage Rating: 208/240 V
Water Heater Type: Electric
Features
- Absorbs ambient heat from the surrounding air to heat water using a compressor and environmentally friendly R-134A refrigerant
- The self-contained heat pump unit is integrated into the top of the tank
- Multiple operating modes to maximize efficiency and performance
- Improved efficiency design to ensure available hot water at the lowest possible cost and up to a 3.45 uniform energy factor (EF) rating conserves energy and meets energy STAR® qualifications
- Select from efficiency, hybrid or electric modes to match heating requirements to environmental conditions
- Hybrid mode automatically adjusts between compressor and element, depending upon heat requirements
- Vacation mode reduces operating costs and provides freeze protection during extended absence
- Long-lasting backup heating elements help heat water according to environmental conditions, demand and the chosen operating mode
- Commercial-grade glass coating provides superior corrosion-resistance
- Temperature and pressure relief valve protects the tank against excessive temperature and pressure
- Permits installation in confined places and allow using cool air discharge for cooling other areas at home
- Control system checks to ensure the tank is full of water during start-up to prevent dry firing the heating elements
- User friendly electronic interface allows easy control of temperature setting, operating modes and communicates diagnostics
- Easy to read temperature display shows temperature in deg F or deg C
- The last four error messages are saved in the control system memory
- Dual anode rods with stainless steel cores allowing superior tank protection for much longer life
- Solid brass, tamper-resistant, ball type drain valve designed for easy operation
- Advanced diagnostics convey error messages for service purposes
