CONCORD 11Y20 Image 1

CONCORD 13L24P 2.0TON CONDENSER 13 SEER R410A

MFR Part #: 11Y20
SKU #: 1133015
Brand: Ducane™
UPC: 662551499698

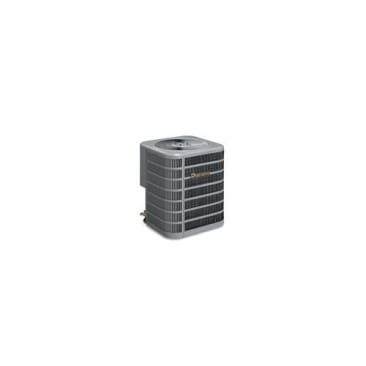

Ducane™ 11Y20 Louvered Split System Air Conditioner, 2 ton Cooling, 208/230 VAC, 14.1 A, 1 ph, 60 Hz, 13 SEER
10-Years Limited on Compressor and Parts
AHRI™ Certified|cETLus Listed|Energy Star® Qualified|ETL Listed|ETLC Listed

Ducane™ Split System Air Conditioner, Louvered, Series: 4AC13L, 2 ton Nominal, 11 EER, 13 SEER, 208/230 VAC, 14.1 A, 1 ph, 60 Hz Power Source, 20 A Fuse, 800 cfm Flow Rate, R-410A Refrigerant, 74 dBA Sound Level, 5/8 in Suction Line, 3/8 in Discharge Line, 1/10 hp Motor, 1010 rpm, 24-1/4 in W x 24-1/4 in D x 25 in H Dimensions

The Ducane™ 4AC13 is built with carefully selected components, like the heavy-duty scroll compressor, and is 100% factory-tested to ensure your air conditioner will last for years to come. The Seasonal Energy Efficiency Ratio (SEER), is the standard measure of an air conditioner's operating efficiency. A higher SEER indicates better performance and energy savings. Rated at 13 SEER, the Ducane 4AC13 air conditioner uses less energy than older units, so you'll spend less on utility bills.

Product Details

Ducane™ Split System Air Conditioner, Louvered, Series: 4AC13L, 2 ton Nominal, 11 EER, 13 SEER, 208/230 VAC, 14.1 A, 1 ph, 60 Hz Power Source, 20 A Fuse, 800 cfm Flow Rate, R-410A Refrigerant, 74 dBA Sound Level, 5/8 in Suction Line, 3/8 in Discharge Line, 1/10 hp Motor, 1010 rpm, 24-1/4 in W x 24-1/4 in D x 25 in H Dimensions

The Ducane™ 4AC13 is built with carefully selected components, like the heavy-duty scroll compressor, and is 100% factory-tested to ensure your air conditioner will last for years to come. The Seasonal Energy Efficiency Ratio (SEER), is the standard measure of an air conditioner's operating efficiency. A higher SEER indicates better performance and energy savings. Rated at 13 SEER, the Ducane 4AC13 air conditioner uses less energy than older units, so you'll spend less on utility bills.

Attributes

Dimensions24-1/4 in W x 24-1/4 in D x 25 in H
Discharge Line Size3/8 in
EER Rating11
Flow Rate800 cfm
Fuse Size20 A
Motor HP1/10 hp
Motor RPM1010 rpm
Nominal Capacity2 ton
Power Source208/230 VAC, 14.1 A, 1 ph, 60 Hz
Refrigerant TypeR-410A
SEER Rating13
Series4AC13L
Sound Level74 dBA
Suction Line Size5/8 in
TypeLouvered

Features

  • 13 SEER efficiency rating means you can save on utility bills, compared to an older or less efficient unit
  • Permanently lubricated condenser fan motor needs no annual maintenance
  • Rigorous run-testing of each unit in our factory helps ensures the most reliable performance in your home
  • heavy-duty, single stage scroll compressor is built tough for years of reliable, trouble free performance
