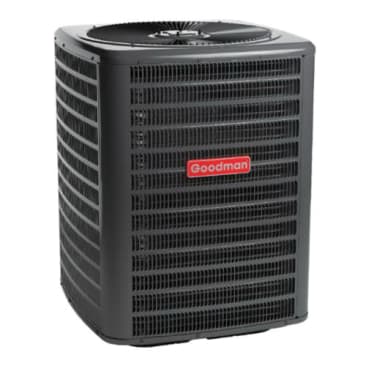

GOODMAN GSZC160481 16 SEER HP 4 TON
MFR Part #: GSZC160481
SKU #: 1219200
Brand: Goodman®
UPC: 978662
Goodman® GSZC16 GSZC160481 Split-System Heat Pump, 208-230 V, 26.5 A, 48000 Btu/hr Cooling/Heating BTU, 1/5 hp, Steel
AHRI Certified | ENERGY STAR Certified | ETL Listed
Product Details
Attributes
Features
Goodman® Split-System Heat Pump, Model: GSZC16, 208-230 V, 26.5 A, 1/5 hp, 60 Hz, 1 ph Phase, 48000 Btu/hr Cooling/Heating, 16 SEER, Scroll Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 7/8 in Suction Line, 45 A Fuse Rating, Tonnage: 4 ton, 75 dBA Sound Level, 2 Stages, Steel, Finish: Galvanized, 40 in H x 35-1/2 in W x 35-1/2 in D
Amperage Rating:
26.5 A
BTU Rating:
48000 Btu/hr Cooling/Heating
Compressor Type:
Scroll
Dimensions:
40 in H x 35-1/2 in W x 35-1/2 in D
Finish:
Galvanized
Frequency Rating:
60 Hz
Fuse Rating:
45 A
HP Rating:
1/5 hp
Liquid Line Size:
3/8 in
Material:
Steel
Model:
GSZC16
Number of Stages:
2
Phase:
1 ph
Refrigerant Type:
R-410A
SEER Rating:
16
Sound Level:
75 dBA
Suction Line Size:
7/8 in
Tonnage:
4 ton
Voltage Rating:
208-230 V
- Two-stage Copeland™ UltraTech™ scroll compressor
- High density foam compressor sound blanket
- Integrated communicating ComfortBridge™ technology
- Commissioning and diagnostics via indoor board Bluetooth® with the CoolCloud™ phone and tablet application
- Expanded ComfortAlert™ diagnostics built-in
- Set up capable with two low-voltage wires to outdoor unit
- Diagnostic indicator lights and storage of six-fault codes
- Color-coded terminal strip for non-communicating set-up
- SmartShift® technology with short cycle protection to ensure quiet, reliable defrost
- Factory installed bi-flow liquid line filter dryer
- Factory installed transformer
- Factory installed suction line accumulator
- Factory installed compressor crankcase heater
- Factory installed high capacity muffler
- Factory installed coil and ambient temperature sensors
- High and low pressure switches
- Fully charged for 15 ft of tubing length
- Two-speed quiet condenser fan motor
- Sweat connection service valves with easy-access to gauge ports
- Goodman® brand sound control top design
