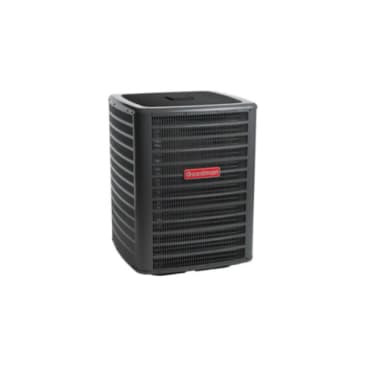

GOODMAN GSZC180361 18 SEER HP 3 TON
Product Details
Attributes
Features
Resources
Goodman® Split-System Heat Pump, Model: GSZC18, 208-230 V, 21.3 A, 1/3 hp, 60 Hz, 1 ph Phase, 34800 Btu/hr Cooling, 35000 Btu/hr Heating, 1220 cfm, 18 SEER, 10 HSPF, Sweat Connection, Scroll Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 3/8 in Suction Line, 35 A Fuse Rating, Tonnage: 3 ton, 75 dB Sound Level, 3 Stages, Steel, Finish: Galvanized/Powder-Coated, 34-5/8 in H x 35-1/2 in W x 35-1/2 in D, Domestic/Import: Domestic, Additional Information: Multi-Position Configuration
- High efficiency two-stage scroll compressor
- High density foam compressor sound blanket
- Integrated communicating ComfortBridge™ technology
- Commissioning and diagnostics via indoor board Bluetooth® with the CoolCloud™ phone and tablet application
- Expanded ComfortAlert™ diagnostics built-in
- Set up capable with two low-voltage wires to outdoor unit
- Diagnostic indicator lights and storage of six-fault codes
- Color-coded terminal strip for non-communicating set-up
- SmartShift® technology with short cycle protection to ensure quiet, reliable defrost
- Factory installed bi-flow liquid line filter dryer
- Factory installed transformer
- Factory installed suction line accumulator
- Factory installed compressor crankcase heater
- Factory installed high capacity muffler
- Factory installed coil and ambient temperature sensors
- High and low pressure switches
- Quiet ECM style condenser fan motor
- Steel louver coil guard
- Top and side maintenance access
Product Details
Goodman® Split-System Heat Pump, Model: GSZC18, 208-230 V, 21.3 A, 1/3 hp, 60 Hz, 1 ph Phase, 34800 Btu/hr Cooling, 35000 Btu/hr Heating, 1220 cfm, 18 SEER, 10 HSPF, Sweat Connection, Scroll Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 3/8 in Suction Line, 35 A Fuse Rating, Tonnage: 3 ton, 75 dB Sound Level, 3 Stages, Steel, Finish: Galvanized/Powder-Coated, 34-5/8 in H x 35-1/2 in W x 35-1/2 in D, Domestic/Import: Domestic, Additional Information: Multi-Position Configuration
Attributes
Features
- High efficiency two-stage scroll compressor
- High density foam compressor sound blanket
- Integrated communicating ComfortBridge™ technology
- Commissioning and diagnostics via indoor board Bluetooth® with the CoolCloud™ phone and tablet application
- Expanded ComfortAlert™ diagnostics built-in
- Set up capable with two low-voltage wires to outdoor unit
- Diagnostic indicator lights and storage of six-fault codes
- Color-coded terminal strip for non-communicating set-up
- SmartShift® technology with short cycle protection to ensure quiet, reliable defrost
- Factory installed bi-flow liquid line filter dryer
- Factory installed transformer
- Factory installed suction line accumulator
- Factory installed compressor crankcase heater
- Factory installed high capacity muffler
- Factory installed coil and ambient temperature sensors
- High and low pressure switches
- Quiet ECM style condenser fan motor
- Steel louver coil guard
- Top and side maintenance access
