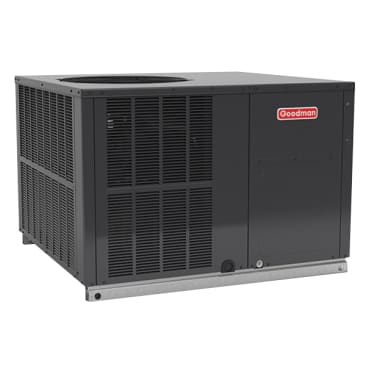

GOODMAN GPH1448M41 Image 1

GOODMAN GPH1448M41 4 TON 14 SEER CNVRT PKGD HP

MFR Part #: GPH1448M41
SKU #: 1219445
Brand: Goodman®
UPC: 978908
Goodman® GPH14M Series GPH1448M41 Package Heat Pump, 4 ton Nominal, 45600 Btu/hr Heating Btu, 208/230 VAC
AHRI Certified, C/US ETL Intertek Listed, BBB accredited, ISO 9001, ISO 14001 Certified

Goodman® Package Heat Pump, Series: GPH14M, 4 ton Nominal Capacity, 48000 Btu/hr Cooling BTU, 45600 Btu/hr heating BTU, 208/230 VAC, 34.5 A, 3/4 hp Blower Motor, 1/4 hp Condenser Motor, 60 Hz, 1 ph Phase, 1050 rpm Blower Motor, 1075 rpm Condenser Motor Rotational Speed, Scroll Compressor, 1600 cfm, 14 SEER, 8 HSPF, 11 EER Rating, Multi-Position, 3/4 in Drain Connection, R-410A Refrigerant, 1 Stage, 50 A Fuse Rating, 79 dBA Sound Level, Heavy Gauge Steel, Galvanized, Powder-Painted, Gray, 47 in W x 51 in D x 42-3/4 in H

Product Details

Goodman® Package Heat Pump, Series: GPH14M, 4 ton Nominal Capacity, 48000 Btu/hr Cooling BTU, 45600 Btu/hr heating BTU, 208/230 VAC, 34.5 A, 3/4 hp Blower Motor, 1/4 hp Condenser Motor, 60 Hz, 1 ph Phase, 1050 rpm Blower Motor, 1075 rpm Condenser Motor Rotational Speed, Scroll Compressor, 1600 cfm, 14 SEER, 8 HSPF, 11 EER Rating, Multi-Position, 3/4 in Drain Connection, R-410A Refrigerant, 1 Stage, 50 A Fuse Rating, 79 dBA Sound Level, Heavy Gauge Steel, Galvanized, Powder-Painted, Gray, 47 in W x 51 in D x 42-3/4 in H

Attributes

Amperage Rating: 34.5 A
CFM Rating: 1600 cfm
Color: Gray
Compressor Type: Scroll
Configuration: Multi-Position
Connection Type: 3/4 in Drain
Cooling BTU Rating: 48000 Btu/hr Cooling
Dimensions: 47 in W x 51 in D x 42-3/4 in H
EER Rating: 11
Finish: Galvanized, Powder-Painted
Frequency Rating: 60 Hz
Fuse Rating: 50 A
Heating BTU Rating: 45600 Btu/hr Heating
HP Rating: 3/4 hp Blower Motor, 1/4 hp Condenser Motor
HSPF Rating: 8
Material: Heavy Gauge Steel
Nominal Capacity: 4 ton
Number of Stages: 1
Phase: 1 ph
Refrigerant Type: R-410A
Rotational Speed: 1050 rpm Blower Motor, 1075 rpm Condenser Motor
SEER Rating: 14
Series: GPH14M
Sound Level: 79 dBA
Voltage Rating: 208/230 VAC

Features

  • 21.8 A-rated load, 117 A locked rotor compressor
  • Five-speed evaporator motor
  • High-efficiency compressor
  • ECM indoor blower motor
  • Liquid-line filter drier
  • All aluminum evaporator coils
  • Copper tube/aluminum fin condenser coil
  • Electric heat kit available as a field installed accessory
  • Fully insulated air-handling compartment with convenient access panels cabinet
  • Louvered condenser coil protection
  • One-footprint, two-heights cabinet
  • 10 years limited parts warranty

Resources

Instruction/Installation Manual
