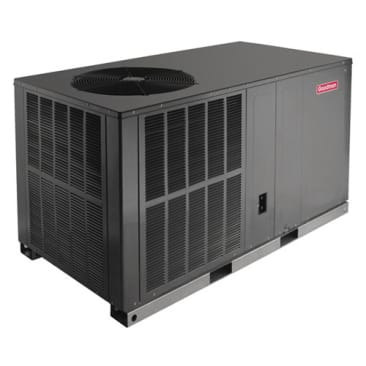

GOODMAN GPH1460H41 Image 1

GOODMAN GPH1460H41 5 TON PKGD 14 SEER HP

MFR Part #: GPH1460H41
SKU #: 1219452
Brand: Goodman®
UPC: 978915
Goodman® GPH1460H41 Self-Contained Package Heat Pump, 5 ton Nominal, 54500 Btu/hr Heating Btu, 208/230 VAC
C/US ETL Intertek Listed, C-AHRI Certified, Energy Star Certified

Goodman® Self-Contained Package Heat Pump, Series: GPH, 5 ton Nominal Capacity, 57000 Btu/hr Cooling BTU, 54500 Btu/hr heating BTU, 208/230 VAC, 40.2 A, 3/4 hp, 60 Hz, 1 ph Phase, 1075 rpm Rotational Speed, Scroll Compressor, 1600 cfm, 14.2 SEER, 12 EER Rating, 3/4 in NPT Drain Connection, R-410A Refrigerant, 1 Stage, 60 A Fuse Rating, Evaporator Coil - 7 sq-ft Face Area, 14 Fins/in, Condenser Coil - 19.1 sq-ft Face Area, 16 Fins/in Coil Rating, Galvanized Steel, Powder-Painted, 66.25 in W x 34.075 in D x 38.75 in H

Product Details

Goodman® Self-Contained Package Heat Pump, Series: GPH, 5 ton Nominal Capacity, 57000 Btu/hr Cooling BTU, 54500 Btu/hr heating BTU, 208/230 VAC, 40.2 A, 3/4 hp, 60 Hz, 1 ph Phase, 1075 rpm Rotational Speed, Scroll Compressor, 1600 cfm, 14.2 SEER, 12 EER Rating, 3/4 in NPT Drain Connection, R-410A Refrigerant, 1 Stage, 60 A Fuse Rating, Evaporator Coil - 7 sq-ft Face Area, 14 Fins/in, Condenser Coil - 19.1 sq-ft Face Area, 16 Fins/in Coil Rating, Galvanized Steel, Powder-Painted, 66.25 in W x 34.075 in D x 38.75 in H

Attributes

Amperage Rating: 40.2 A
CFM Rating: 1600 cfm
Coil Rating: Evaporator Coil - 7 sq-ft Face Area, 14 Fins/in, Condenser Coil - 19.1 sq-ft Face Area, 16 Fins/in
Compressor Type: Scroll
Connection Type: 3/4 in NPT Drain
Cooling BTU Rating: 57000 Btu/hr Cooling
Dimensions: 66.25 in W x 34.075 in D x 38.75 in H
EER Rating: 12
Finish: Powder-Painted
Frequency Rating: 60 Hz
Fuse Rating: 60 A
Heating BTU Rating: 54500 Btu/hr Heating
HP Rating: 3/4 hp
Material: Galvanized Steel
Nominal Capacity: 5 ton
Number of Stages: 1
Phase: 1 ph
Refrigerant Type: R-410A
Rotational Speed: 1075 rpm
SEER Rating: 14.2
Series: GPH
Voltage Rating: 208/230 VAC

Features

  • Energy efficient compressor with internal relief valve
  • EEM blower motor
  • Quiet horizontal discharge
  • Copper tube/aluminum fin coil
  • Totally enclosed permanently lubricated condenser fan motor
  • Fully charged system
  • Heavy gauge galvanized steel cabinet with attractive architectural gray powder paint finish
  • Fully insulated blower compartment with convenient access panels
  • Louvered condenser coil protection
  • One-footprint, three-heights
  • 10 years limited parts warranty

Resources

Catalog
Instruction/Installation Manual
Specification Sheet
