GOODMAN CHPF3642D6 HORIZ A-COIL 36K - 42K 24.5IN
MFR Part #: CHPF3642D6
SKU #: 1219676
Brand: Goodman®
UPC: 979140

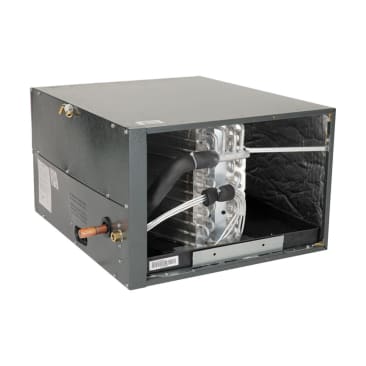

Goodman® CHPF Series CHPF3642D6 Cased Horizontal Evaporator Coil, Cased A Coil, 3 to 3.5 ton, 36000 to 42000 Btu/hr
10 Year Limited
AHRI Certified, ETL Intertek Listed, ISO 9001, ISO 14001 Certified
Product Details
Attributes
Features
Resources
Goodman® Cased Horizontal Evaporator Coil, Series: CHPF Series, 36000 to 42000 Btu/hr, 13 SEER, 3 to 3.5 ton, R-22, R-410A, 5.96 sq-ft Coil Rating, Cased A Coil, 3/8 in, 7/8 in, 0.078 in Piston Size, Aluminum, Painted, 22 in H x 19-1/2 in W
BTU Rating:
36000 to 42000 Btu/hr
Coil Rating:
5.96 sq-ft
Coil Type:
Cased A
Connection Size:
3/8 in, 7/8 in
Dimensions:
22 in H x 19-1/2 in W
Finish:
Painted
Material:
Aluminum
Piston Size:
.078 in
Refrigerant Type:
R-22, R-410A
SEER Rating:
13
Series:
CHPF Series
Tonnage:
3 to 3.5 ton
- Split seam front for easy access
- Foil faced insulation covers the internal casing to reduce cabinet condensation
- Rust-resistant, thermoplastic drain pans featuring a low water retention design
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- UV-resistant drain pan
- 21 in D for easier attic access
- Check flow rate for cooling and heat pump applications
- Fits 24-1/2 in furnace cabinet
- Aluminum tube and aluminum fin coil construction
- Grooved aluminum tubing
- Every unit is helium pressure tested during construction
- Every all aluminum coil is pressure tested and vacuum tested
Product Details
Goodman® Cased Horizontal Evaporator Coil, Series: CHPF Series, 36000 to 42000 Btu/hr, 13 SEER, 3 to 3.5 ton, R-22, R-410A, 5.96 sq-ft Coil Rating, Cased A Coil, 3/8 in, 7/8 in, 0.078 in Piston Size, Aluminum, Painted, 22 in H x 19-1/2 in W
Attributes
BTU Rating: 36000 to 42000 Btu/hr
Coil Rating: 5.96 sq-ft
Coil Type: Cased A
Connection Size: 3/8 in, 7/8 in
Dimensions: 22 in H x 19-1/2 in W
Finish: Painted
Material: Aluminum
Piston Size: .078 in
Refrigerant Type: R-22, R-410A
SEER Rating: 13
Series: CHPF Series
Tonnage: 3 to 3.5 ton
Features
- Split seam front for easy access
- Foil faced insulation covers the internal casing to reduce cabinet condensation
- Rust-resistant, thermoplastic drain pans featuring a low water retention design
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- UV-resistant drain pan
- 21 in D for easier attic access
- Check flow rate for cooling and heat pump applications
- Fits 24-1/2 in furnace cabinet
- Aluminum tube and aluminum fin coil construction
- Grooved aluminum tubing
- Every unit is helium pressure tested during construction
- Every all aluminum coil is pressure tested and vacuum tested
