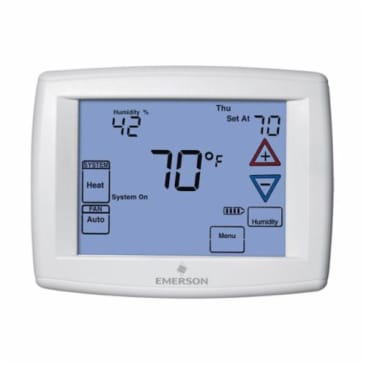

WHITE RODGERS 1F95-1291 BLUE TOUCHSCREEN PROGRAMABLE THERMOSTAT 2HEAT/2COOL
MFR Part #: 1F95-1291
SKU #: 1264785
Brand: White-Rodgers™
UPC: 786710534577
White-Rodgers™ Blue™ 1F95-1291 Thermostat, Digital, Programmable Thermostat, 45 to 99 deg F Control, 7 or 5-1-1 Days Programs per Week, RC, RH, C, W/E, W2, Y, Y2, O/B, G, L, 6, +, S, -, DHM, HM Terminal, Import
5 Years
NEC Class II
Product Details
Attributes
Features
Resources
White-Rodgers™ Blue™ Thermostat, Digital, Programmable Thermostat, 45 to 99 deg F Control, RC, RH, C, W/E, W2, Y, Y2, O/B, G, L, 6, +, S, -, DHM, HM Terminal Designations, Heat/Cool/Off System Switching, Auto Fan Switching, 4 Stage, 2 Stages Heat, 2 Stages Cool, 7 or 5-1-1 Days Programs per Week, 12 sq-in Lighted Touchscreen Display, 20 to 30 VAC, Battery/Hardwired/Power Saving Battery Assist Power Source, White, 5-13/16 in W x 1-13/16 in D x 4-9/16 in H, Import
Color:
White
Control Range:
45 to 99 deg F
Country Of Origin:
China
Dimensions:
5-13/16 in W x 1-13/16 in D x 4-9/16 in H
Display Type:
12 sq-in Lighted Touchscreen
Domestic/Import:
Import
Fan Switching:
Auto
Number of Stages:
4
Power Source:
Battery/Hardwired/Power Saving Battery Assist
Programs per Week:
7 or 5-1-1 Days
Stages Cool:
2
Stages Heat:
2
System Switching:
Heat/Cool/Off
Terminal Designations:
RC, RH, C, W/E, W2, Y, Y2, O/B, G, L, 6, +, S, -, DHM, HM
Thermostat Type:
Digital, Programmable
Voltage Rating:
20 to 30 VAC
- Universal models quickly configure for single stage, multi-stage or heat pumps and heat pumps dual fuel system - programmable or non-programmable
- Humidity control offers humidification/dehumidification
- Commercial offers occupied damper or economizer control
- Staging control for nearly all conventional and heat pumps system
- Single stage model compatible with all single stage systems low voltage 750 mV and 3 wires zone system
- Heat pumps dual fuel options eliminate the needs for a fossil fuel kit
- Automatic changeover options
- Program fan options
- Keypad lockout and set point temperature limits options
- Indoor remote sensor for averaging options
- Outdoor remote sensor options
- Add to universal models for outdoor temp readings or, on select models, dual fuel balance points and outdoor thermostat functions
- Dual power hardwired and/or battery or tripower hardwired and/or battery with system assist
- Auto changeover
- Programmable fan mode
- Energy management recovery
- Logic dual fuel heat pumps control
- Total/partial keypad lockout
- Permanent memory back-up
- For gas oils, electric application, 3 wires zone valves, millivolt compatible
