BRADLEY S19-2150EFX-20 THERMOMATIC MIXING VALVE 3/4 IN 1 OUT
Product Details
Attributes
Features
Resources

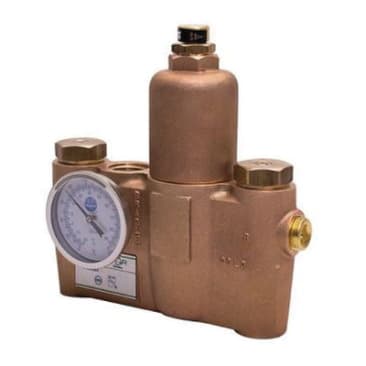

Bradley® Navigator® Emergency Fixture Thermostatic Mixing Valve, 3/4 in Connection, FNPT Connection, 19.5 gpm Flow Rate, 125 psi, 65 to 90 deg F, Brass Body, 9-3/16 in Diameter, 9-5/8 in Length, 2-3/4 in Width, Additional Information: Water Media
Bradley® navigator thermostatic mixing valve, designed for use in commercial applications. Valve designed specifically to provide tepid water required for drench shower and eye wash applications. Includes fixed cold-water bypass and anti-scald positive shut-off to protect users. Powerful liquid filled thermostat with 10 years warranty insures constant outlet temperature. Provides tepid water as required by ANSI Z358.1. Certified to ASSE 1071. Rough brass finish. Complements Bradley® full line of drench shower and eye wash products. Incoming 3/4 in NPT connections, outlet is 1 in NPT. Dial thermometer. Maximum operating pressure of 125 psi. Minimum temperature differential of 15 deg F between incoming hot water temperature and valve set point. Manufactures limited warranty.
- Single valve design
- Reliable liquid filled thermostat with 10 years warranty
- Factory assembled and tested
- Universal mounting capability
- Positive shut-off of hot supply when cold supply is lost
- Built-in cold-water bypass assures cold flow
- Easy installation and serviceability
- Dial thermometer
- Dirt and lime-resistant
Product Details
Bradley® Navigator® Emergency Fixture Thermostatic Mixing Valve, 3/4 in Connection, FNPT Connection, 19.5 gpm Flow Rate, 125 psi, 65 to 90 deg F, Brass Body, 9-3/16 in Diameter, 9-5/8 in Length, 2-3/4 in Width, Additional Information: Water Media
Bradley® navigator thermostatic mixing valve, designed for use in commercial applications. Valve designed specifically to provide tepid water required for drench shower and eye wash applications. Includes fixed cold-water bypass and anti-scald positive shut-off to protect users. Powerful liquid filled thermostat with 10 years warranty insures constant outlet temperature. Provides tepid water as required by ANSI Z358.1. Certified to ASSE 1071. Rough brass finish. Complements Bradley® full line of drench shower and eye wash products. Incoming 3/4 in NPT connections, outlet is 1 in NPT. Dial thermometer. Maximum operating pressure of 125 psi. Minimum temperature differential of 15 deg F between incoming hot water temperature and valve set point. Manufactures limited warranty.
Attributes
Features
- Single valve design
- Reliable liquid filled thermostat with 10 years warranty
- Factory assembled and tested
- Universal mounting capability
- Positive shut-off of hot supply when cold supply is lost
- Built-in cold-water bypass assures cold flow
- Easy installation and serviceability
- Dial thermometer
- Dirt and lime-resistant
