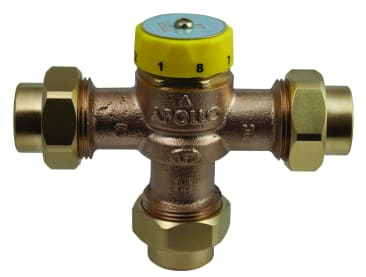

CONBRACO 34ALF213X 1/2 PEX MIXING VALVE
Product Details
Attributes
Features
Resources
Apollo™, 34ALF213X, Thermostatic Mixing Valve, Master, Series: 34ALF, 1/2 in Nominal, PEX End Style, 150 psi Pressure, 210 deg F, 0.5 gpm Flow, Media: Water, 4.56 in Inlet to Outlet Length, Bronze Body, Chloramine Resistant EPDM O-Ring Softgoods, Domestic
The Apollo® MVA-LF (34ALF Series) thermostatic master mixing valves are designed for ASSE 1017 Point of Source approved applications. They provide hot water temperature control of potable and non-potable hot water distribution systems. The valves are built using Lead Free materials and are available with a variety of options and end connections.
- Superior thermostatic element technology for optimum performance, reliability and accuracy
- Integral inlet strainers and check valves to protect against cross-flow and foreign particles in the piping system
- Thermostat over-temperature protection
- Tamper resistant maximum temperature calibration option
- Fingertip temperature control
- Instantaneous cold or hot water supply failure shut-off protection
- Multiple connection options to fit your specific needs
- 39 to 80 deg F (4 to 27 deg C) cold water inlet
- 120 to 180 deg F (49 to 82 deg C) hot water inlet
- 85 to 140 deg F (30 to 60 deg C) mixed water
- Flowrate at 30 psid - 19 gpm (64 lpm)
- Lead free - the wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
Product Details
Apollo™, 34ALF213X, Thermostatic Mixing Valve, Master, Series: 34ALF, 1/2 in Nominal, PEX End Style, 150 psi Pressure, 210 deg F, 0.5 gpm Flow, Media: Water, 4.56 in Inlet to Outlet Length, Bronze Body, Chloramine Resistant EPDM O-Ring Softgoods, Domestic
The Apollo® MVA-LF (34ALF Series) thermostatic master mixing valves are designed for ASSE 1017 Point of Source approved applications. They provide hot water temperature control of potable and non-potable hot water distribution systems. The valves are built using Lead Free materials and are available with a variety of options and end connections.
Attributes
Features
- Superior thermostatic element technology for optimum performance, reliability and accuracy
- Integral inlet strainers and check valves to protect against cross-flow and foreign particles in the piping system
- Thermostat over-temperature protection
- Tamper resistant maximum temperature calibration option
- Fingertip temperature control
- Instantaneous cold or hot water supply failure shut-off protection
- Multiple connection options to fit your specific needs
- 39 to 80 deg F (4 to 27 deg C) cold water inlet
- 120 to 180 deg F (49 to 82 deg C) hot water inlet
- 85 to 140 deg F (30 to 60 deg C) mixed water
- Flowrate at 30 psid - 19 gpm (64 lpm)
- Lead free - the wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
