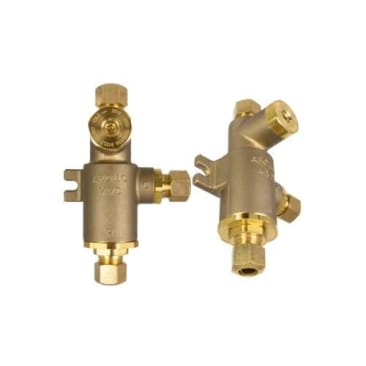

CONBRACO 34DLF40201 3/8 LEAD FREE SINGLE BRONZE MINI MIXING VALVE

MFR Part #: 34DLF40201
SKU #: 1112749
Brand: Apollo™ Conbraco
UPC: 191988015374
Apollo™ 34DLF40201 34DLF-400 Standard Mixing Valve, 3/8 in Nominal, Compression End Style, 125 psi Pressure, 0.25 to 3.3 gpm Flow, DZR Brass Body, Domestic
5 Years
Designed For Point Of Use Single Fixture Temperature Control Applications
ARRA Compliant | ASME A112.1070-2015 | ASSE 1070-2015 | cCSAus Certified | CSA B125.70-2015 | NSF/ANSI 372 | NSF/ANSI/CAN 61 | PROP65: Cancer and Reproductive Harm

Apollo™, 34DLF40201, Mixing Valve, Standard, Series: 34DLF-400, 3/8 in Nominal, Compression End Style, 125 psi Pressure, 38 to 80 in Cold/120 to 80 in Hot deg F, 0.25 to 3.3 gpm Flow, Media: Hot/Cold Water, DZR Brass Body, Stainless Steel Trim, Chloramine-Resistant EPDM Softgoods, 4.27 in H x 2.22 in W Dimensions, Domestic

The Apollo™ 34DLF-400 Series mini thermostatic Mixing Valve is designed for point of use single fixture temperature control applications, using proven ASTM grade lead-free materials. These valves will provide control to a desired temperature within +/-3 deg F in accordance with the harmonized standard of ASSE 1070-2015/ASME 112.1070-2015/CSA B125.70-2015.

Product Details

Apollo™, 34DLF40201, Mixing Valve, Standard, Series: 34DLF-400, 3/8 in Nominal, Compression End Style, 125 psi Pressure, 38 to 80 in Cold/120 to 80 in Hot deg F, 0.25 to 3.3 gpm Flow, Media: Hot/Cold Water, DZR Brass Body, Stainless Steel Trim, Chloramine-Resistant EPDM Softgoods, 4.27 in H x 2.22 in W Dimensions, Domestic

The Apollo™ 34DLF-400 Series mini thermostatic Mixing Valve is designed for point of use single fixture temperature control applications, using proven ASTM grade lead-free materials. These valves will provide control to a desired temperature within +/-3 deg F in accordance with the harmonized standard of ASSE 1070-2015/ASME 112.1070-2015/CSA B125.70-2015.

Attributes

Country Of Origin: US
Flow Capacity: 0.25 to 3.3 gpm
Nominal Size: 3/8 in
Body Material: DZR Brass
Dimensions: 4.27 in H x 2.22 in W
Domestic/Import: Domestic
End Style: Compression
Media: Hot/Cold Water
Pressure Rating: 125 psi
Series: 34DLF-400
Softgoods Material: Chloramine-Resistant EPDM
Temperature Rating: 38 to 80 in Cold/120 to 80 in Hot deg F
Trim Material: Stainless Steel
Type: Standard

Features

  • Dezincification-resistant lead-free brass body
  • Tamper-resistant locking control knob
  • 120 deg F temperature limit stop
  • Integral inlet check valves now with strainers
  • 3/8 in compression tube/braided hose connection
  • Cross flow protection
  • Cold water supply failure protection
  • Integral mounting pad
  • Single outlet design for sensor faucets
  • Easy access to inlet screens
  • Chloramine-resistant EPDM O-ring
