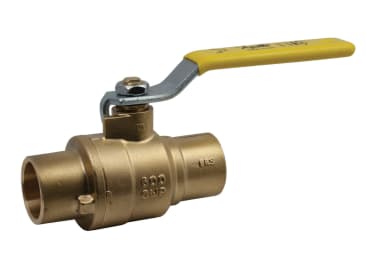

CONBRACO 77F20301 Image 1

CONBRACO 77F20301 1/2 CXC BALL VALVE

MFR Part #: 77F20301
SKU #: 1119114
Brand: Apollo™ Conbraco
UPC: 670750707032
Apollo™ 77F20301 77F-200 Ball Valve, 1/2 in Nominal, Solder End Style, Full Port, Domestic
5 Years
Plumbing and Heating Application
ARRA Compliant | ASTM B283-C37700 Body | ASTM B16-C36000 Ball/Stem | FM 1140 | IAPMO IGC-157 | MSS SP-110 | PROP65: Cancer and Reproductive Harm

Apollo™, 77F20301, Ball Valve, Series: 77F-200, 1/2 in Nominal, Solder End Style, 600 psi CWP Pressure, 0 to 350 deg F, Full Port, 1/2 in Orifice, Standard Lever Actuator, 2.37 in Inlet to Outlet Length, 1.66 in Top to Inlet Center, Brass Stem/RPTFE Seat Trim, Domestic

The Apollo™ 77F-200 series is a full port forged brass ball valve suitable for a wide range of plumbing and heating applications. This valve is designed to be soft soldered into lines without disassembly. Proudly Made in the USA.

Product Details

Apollo™, 77F20301, Ball Valve, Series: 77F-200, 1/2 in Nominal, Solder End Style, 600 psi CWP Pressure, 0 to 350 deg F, Full Port, 1/2 in Orifice, Standard Lever Actuator, 2.37 in Inlet to Outlet Length, 1.66 in Top to Inlet Center, Brass Stem/RPTFE Seat Trim, Domestic

The Apollo™ 77F-200 series is a full port forged brass ball valve suitable for a wide range of plumbing and heating applications. This valve is designed to be soft soldered into lines without disassembly. Proudly Made in the USA.

Attributes

Ball Material: Chrome Plated Brass
Body Material: Forged Brass
Connection Type: Solder
Country Of Origin: US
Domestic/Import: Domestic
Inlet to Outlet Length: 2.37 in
Nominal Size: 1/2 in
Operator Type: Standard Lever
Orifice Size: 1/2 in
Port Type: Full
Pressure Rating: 600 psi CWP
Series: 77F-200
Temperature Rating: 0 to 350 deg F
Top to Inlet Center: 1.66 in
Trim Material: Brass Stem/RPTFE Seat

Features

  • Heavy pattern forged design
  • Adjustable stem packing
  • Blow-out proof stem
  • Corrosion resistant materials
  • 100% factory tested
  • Silicone free assembly
  • Vacuum service to 29 in Hg

Resources

Catalog
Specification Sheet
