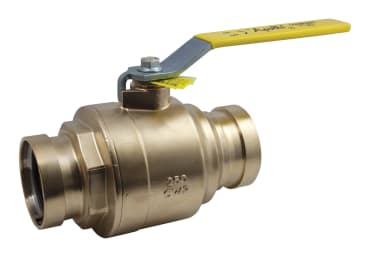

CONBRACO 77V10401 Image 1

CONBRACO 77V10401 3/4 XPRESS BALL VALVE

MFR Part #: 77V10401
SKU #: 1211215
Brand: Apollo™ Conbraco
UPC: 670750674716
Apollo™ 77V10401 77V Ball Valve, 3/4 in Nominal, Press End Style, Full Port, RPTFE/EPDM Softgoods, Domestic
5 Years
Ideal for installation in heating, cooling and non-potable plumbing
ARRA Compliant | Directive 2011/65/CE Listed | IAPMO IGC-157 | RoHS Compliant | UNS C37700 Valve Body/Retainer | UPC Listed | PROP65: Cancer and Reproductive Harm

Apollo™, 77V10401, Ball Valve, Series: 77V, 3/4 in Nominal, Press End Style, 0 to 250 deg F, Full Port, Media: Chilled Water/Hot Water, 3/4 in Orifice, Lever Handle Actuator, Chrome Plated Brass Ball, 3.63 in Inlet to Outlet Length, 1.91 in Top to Inlet Center, RPTFE/EPDM Softgoods, Domestic

The APOLLOPRESS® 77V Series two-piece press ball valve is ideal for installation in heating, cooling and non-potable plumbing. Features Leak Before Press® technology and 250 psig maximum working pressure.

Product Details

Apollo™, 77V10401, Ball Valve, Series: 77V, 3/4 in Nominal, Press End Style, 0 to 250 deg F, Full Port, Media: Chilled Water/Hot Water, 3/4 in Orifice, Lever Handle Actuator, Chrome Plated Brass Ball, 3.63 in Inlet to Outlet Length, 1.91 in Top to Inlet Center, RPTFE/EPDM Softgoods, Domestic

The APOLLOPRESS® 77V Series two-piece press ball valve is ideal for installation in heating, cooling and non-potable plumbing. Features Leak Before Press® technology and 250 psig maximum working pressure.

Attributes

Ball Material: Chrome Plated Brass
Body Material: Forged Brass
Connection Type: Press
Country Of Origin: US
Domestic/Import: Domestic
Inlet to Outlet Length: 3.63 in
Media: Chilled Water/Hot Water
Nominal Size: 3/4 in
Operator Type: Lever Handle
Orifice Size: 3/4 in
Port Type: Full
Series: 77V
Softgoods Material: RPTFE/EPDM
Temperature Rating: 0 to 250 deg F
Top to Inlet Center: 1.91 in
Trim Material: Forged Brass

Features

  • 2 piece, heavy pattern forged design
  • Adjustable stem packing nut
  • Ridgid XL press tool compatible (1/2 to 2 in)
  • Leak before Press technology
  • Blow-out proof stem design
  • Corrosion resistant materials
  • Silicone free
  • EPDM O-ring seals
  • UNS C37700 forged brass retainer
  • Nylon spacer ring
  • Forged brass
  • RPTFE stem packing seat

Resources

Catalog
Line Drawing
Specification Sheet
