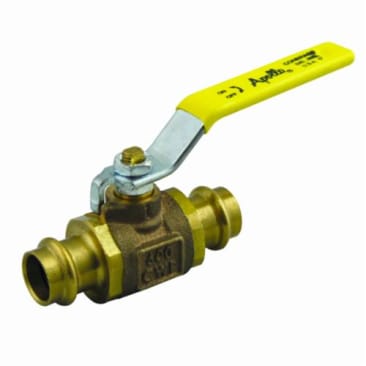

CONBRACO 77W10301 Image 1

CONBRACO 77W10301A 1/2 XPRESS BALL VALVE

MFR Part #: 77W10301
SKU #: 1109997
Brand: Apollo™ Conbraco
UPC: 670750896262
Apollo™ 77W10301 77W 2-Piece Ball Valve, 1/2 in Nominal, Press End Style, Bronze Body, Full Port, Multi-Fill PTFE/EPDM Softgoods, Domestic
5 years
ARRA Compliant | ASTM B16/B584-C84400 Ball | Directive 2011/65/CE Listed RoHS Compliant | MSS SP-110

Apollo™, 77W10301, Ball Valve, 2-Piece, Series: 77W, 1/2 in Nominal, Press End Style, 0 to 250 deg F, Full Port, Media: Chilled Water/Hot Water, 1/2 in Orifice, Lever Handle Actuator, Chrome Plated Brass Ball, 3.08 in Inlet to Outlet Length, 1-1/2 in Top to Inlet Center, Bronze Body, Multi-Fill PTFE/EPDM Softgoods, Domestic

The APOLLOPRESS® 77W Series Ball valve is ideal for installation in heating, cooling and non-potable plumbing. Now with Leak Before Press® feature and 250 psig maximum working pressure.

Product Details

Apollo™, 77W10301, Ball Valve, 2-Piece, Series: 77W, 1/2 in Nominal, Press End Style, 0 to 250 deg F, Full Port, Media: Chilled Water/Hot Water, 1/2 in Orifice, Lever Handle Actuator, Chrome Plated Brass Ball, 3.08 in Inlet to Outlet Length, 1-1/2 in Top to Inlet Center, Bronze Body, Multi-Fill PTFE/EPDM Softgoods, Domestic

The APOLLOPRESS® 77W Series Ball valve is ideal for installation in heating, cooling and non-potable plumbing. Now with Leak Before Press® feature and 250 psig maximum working pressure.

Attributes

Ball Material: Chrome Plated Brass
Body Material: Bronze
Connection Type: Press
Country Of Origin: US
Domestic/Import: Domestic
Inlet to Outlet Length: 3.08 in
Media: Chilled Water/Hot Water
Nominal Size: 1/2 in
Operator Type: Lever Handle
Orifice Size: 1/2 in
Port Type: Full
Series: 77W
Softgoods Material: Multi-Fill PTFE/EPDM
Temperature Rating: 0 to 250 deg F
Top to Inlet Center: 1-1/2 in
Trim Material: Brass
Type: 2-Piece

Features

  • Adjustable stem packing nut
  • Fast, easy, economical installation
  • Leak before Press® technology
  • Blow-out proof stem design
  • Corrosion resistant materials
  • 100% factory tested
  • Silicone free
  • Ridgid® press tool compatible
  • Heavy pattern cast bronze body
  • Zinc plated steel nut
  • ASTM B16 retainer
  • ASTM B16 UNS C36000 brass gland
  • Multi-fill PTFE stem packing/EPDM O-ring
