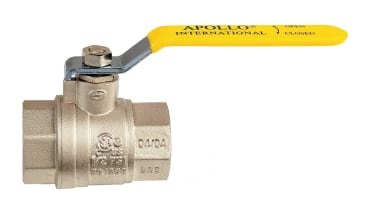

CONBRACO 94A10301 Image 1

CONBRACO 94A10301 1/2 IP BALL VALVE

MFR Part #: 94A10301
SKU #: 1115277
Brand: Apollo™ Conbraco
UPC: 670750823312
Apollo™ 94A10301 94A 2-Piece Ball Valve, 1/2 in Nominal, FNPT End Style, Full Port, PTFE Softgoods
2 Years
Ideal for general flow control applications including HVAC, fuel gases, and fire protection trim and drain etc
CSA File No. 226234 | MSS SP-110 | UL YQNZ/YRBX/YRPV/YSDT/MHKZ | UL 258 | FM 1140 | PROP65: Cancer and Reproductive Harm

Apollo™, 94A10301, Ball Valve, 2-Piece, Series: 94A, 1/2 in Nominal, FNPT End Style, 600 psi CWP Pressure, 0 to 400 deg F, Full Port, Media: Gas, Lever Operated Actuator, 2.05 in Inlet to Outlet Length, 2.04 in Top to Inlet Center, Chrome Plated Brass Stem/PTFE Seat Trim, PTFE Softgoods

The Apollo™ International® 94A forged brass ball valves combine reliable operation with maximum economy. Ideal for general flow control applications including HVAC, fuel gases, and fire protection trim and drain etc. Valves include most pertinent agency approvals.

Product Details

Apollo™, 94A10301, Ball Valve, 2-Piece, Series: 94A, 1/2 in Nominal, FNPT End Style, 600 psi CWP Pressure, 0 to 400 deg F, Full Port, Media: Gas, Lever Operated Actuator, 2.05 in Inlet to Outlet Length, 2.04 in Top to Inlet Center, Chrome Plated Brass Stem/PTFE Seat Trim, PTFE Softgoods

The Apollo™ International® 94A forged brass ball valves combine reliable operation with maximum economy. Ideal for general flow control applications including HVAC, fuel gases, and fire protection trim and drain etc. Valves include most pertinent agency approvals.

Attributes

Ball Material: Chrome Plated Brass
Body Material: Brass
Connection Type: FNPT
Country Of Origin: China
Inlet to Outlet Length: 2.05 in
Media: Gas
Nominal Size: 1/2 in
Operator Type: Lever Operated
Port Type: Full
Pressure Rating: 600 psi CWP
Series: 94A
Softgoods Material: PTFE
Temperature Rating: 0 to 400 deg F
Top to Inlet Center: 2.04 in
Trim Material: Chrome Plated Brass Stem/PTFE Seat
Type: 2-Piece

Features

  • Blow-out proof stem
  • Adjustable stem packing nut
  • Silicone free
  • 100% factory tested
  • Forged brass (Cu >57 percent) retainer
  • Brass gland nut
  • Corrosion resistant plated steel handle and nut
  • 2-1/4 in memory stop option

Resources

Catalog
Owners/User Manual
Specification Sheet
