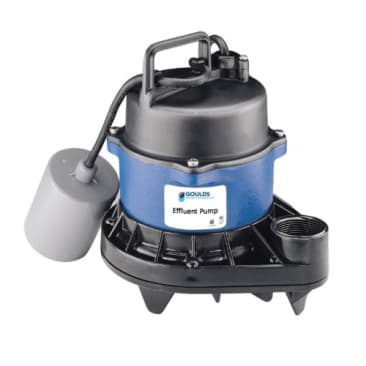

GOULD EP0511AC Image 1

GOULD EP0511AC 1/2 HP SUMP PUMP

MFR Part #: EP0511AC
SKU #: 1002342
Brand: Goulds
UPC: 697666088956
Goulds EP0511AC Submersible Effluent Pump, 60 gpm Max Flow, Automatic, Up to 31 ft Max Head, 115 VAC, 1 ph
Effluent Systems, Homes, Farms, Heavy Duty Sump, Water Transfer and Dewatering Applications
Tested to CSA 22.2 108 and UL 778 Standards By Canadian Standard Association File #LR38549

Goulds Submersible Effluent Pump, Series: EP05, 60 gpm Maximum, Automatic, 1-1/2 in NPT Outlet, Up to 31 ft Maximum Head, 1/2 hp, 115 VAC, 13 A, 60 Hz Frequency, 1 ph ph, 1550 rpm Motor, SJTW 16/3 AWG 20 ft Cord, Thermoplastic Enclosed Impeller, 104 deg F Continuous/140 deg F Intermittent, Heavy Duty Ball Bearing, Cast Iron, 9-1/4 in L x 7-1/2 in W x 10-1/8 in H Dimensions, Domestic

Product Details

Goulds Submersible Effluent Pump, Series: EP05, 60 gpm Maximum, Automatic, 1-1/2 in NPT Outlet, Up to 31 ft Maximum Head, 1/2 hp, 115 VAC, 13 A, 60 Hz Frequency, 1 ph ph, 1550 rpm Motor, SJTW 16/3 AWG 20 ft Cord, Thermoplastic Enclosed Impeller, 104 deg F Continuous/140 deg F Intermittent, Heavy Duty Ball Bearing, Cast Iron, 9-1/4 in L x 7-1/2 in W x 10-1/8 in H Dimensions, Domestic

Attributes

Amperage Rating: 13 A
Automatic/Non Automatic: Automatic
Bearing Type: Heavy Duty Ball
Cord Type: SJTW 16/3 AWG 20 ft
Country Of Origin: US
Dimensions: 9-1/4 in L x 7-1/2 in W x 10-1/8 in H
Domestic/Import: Domestic
Frequency Rating: 60 Hz
Horsepower: 1/2 hp
Impeller Type: Thermoplastic Enclosed
Material: Cast Iron
Maximum Flow Rate: 60 gpm
Maximum Head: Up to 31 ft
Motor Speed: 1550 rpm
Outlet Size: 1-1/2 in NPT
Phase: 1
Series: EP05
Temperature Rating: 104 deg F Continuous/140 deg F Intermittent
Voltage Rating: 115 VAC

Features

  • EP05 thermoplastic enclosed design for improved performance
  • Casing and base are rugged thermoplastic design provides superior strength and corrosion resistance
  • Motor housing - cast iron for efficient heat transfer, strength and durability
  • Motor cover - thermoplastic cover with integral handle and float switch attachment points
  • Power cable - severe duty rated, oil and water resistant
  • Bearings - upper and lower heavy duty ball bearing construction
  • Capable of running dry without damage to components
  • Carbon-rotary/ceramic-stationary, Buna-N elastomers
  • Class B insulation
  • 300 stainless steel fasteners
  • 3/4 in maximum solid handling
  • 3 prong grounding plug
  • Model number: 3871
