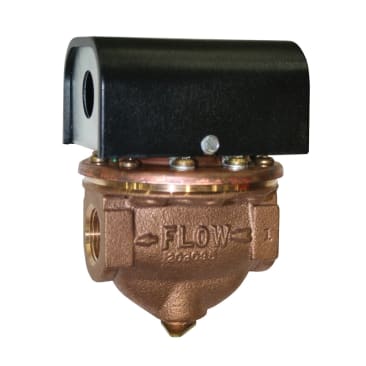

MCDONNEL/MILLER FS6-3/4 FLOW SWITCH (VERY HIGH SENS.)
MFR Part #:Â 115400
SKU #:Â 0452569
Brand:Â McDonnell & Miller
UPC:Â 751875000595
McDonnell & Miller 115400 FS6 High Sensitivity Liquid Flow Switch, 2.5 gpm Flow Rate, 125 VA Power Rating, 7.4 A at 120 VAC/3.7 A at 240 VAC Contact, 3/4 in NPT Connection, SPDT Switch
For heavy duty applications where high sensitivity is required, such as water treatment systems, cooling systems for electronic circuits, compressors, booster pumps, and bearings, and other applications that need instant switching
cULus Listed
Product Details
Attributes
Features
Resources
McDonnell & Miller Liquid Flow Switch, High Sensitivity, Series: FS6, 2.5 gpm, 125 VA, 7.4 A at 120 VAC/3.7 A at 240 VAC Contact, 3/4 in NPT, SPDT Switch, 100 psi, 10 fps Operating, NEMA Type 1 (IP21), 32 to 225 deg F, 3-23/32 in L x 3-3/4 in W
Connection Type:
3/4 in NPT
Contact Rating:
7.4 A at 120 VAC/3.7 A at 240 VAC
Dimensions:
3-23/32 in L x 3-3/4 in W
Enclosure Type:
NEMA Type 1 (IP21)
Flow Rate:
2.5 gpm
Operating Velocity:
10 fps
Power Rating:
125 VA
Pressure Rating:
100 psi
Series:
FS6
Switch Type:
SPDT
Temperature Rating:
32 to 225 deg F
Type:
High Sensitivity
- In-line configuration eliminates need for a pipe tee
- Very high flow capacity
- Actuates at extremely low flow rate
- Switch compartment is completely sealed to protect it from the liquid
- Sensitivity adjusting screw makes flow adjustment easy
Product Details
McDonnell & Miller Liquid Flow Switch, High Sensitivity, Series: FS6, 2.5 gpm, 125 VA, 7.4 A at 120 VAC/3.7 A at 240 VAC Contact, 3/4 in NPT, SPDT Switch, 100 psi, 10 fps Operating, NEMA Type 1 (IP21), 32 to 225 deg F, 3-23/32 in L x 3-3/4 in W
Attributes
Connection Type:Â 3/4 in NPT
Contact Rating:Â 7.4 A at 120 VAC/3.7 A at 240 VAC
Dimensions:Â 3-23/32 in L x 3-3/4 in W
Enclosure Type:Â NEMA Type 1 (IP21)
Flow Rate:Â 2.5 gpm
Operating Velocity:Â 10 fps
Power Rating:Â 125 VA
Pressure Rating:Â 100 psi
Series:Â FS6
Switch Type:Â SPDT
Temperature Rating:Â 32 to 225 deg F
Type:Â High Sensitivity
Features
- In-line configuration eliminates need for a pipe tee
- Very high flow capacity
- Actuates at extremely low flow rate
- Switch compartment is completely sealed to protect it from the liquid
- Sensitivity adjusting screw makes flow adjustment easy
