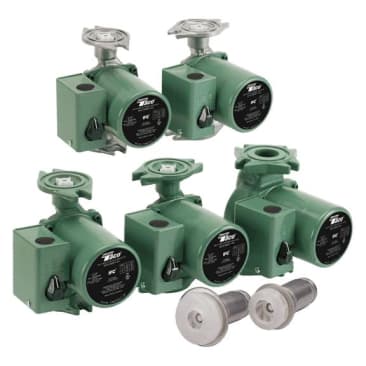

TACO 0015-MSSF3-1IFC 1/20HP FLANGED 3 SPEED STAINLESS STEEL CIRC
MFR Part #: 0015-MSSF3-1IFC
SKU #: 1238543
Brand: Taco® Comfort Solutions™
UPC: 687752044775
Taco® 0015-MSSF3-1IFC 00 Stainless Steel 3-Speed Circulator with Integral Flow Check, 0 to 18 gpm Flow Rate, 3/4, 1, 1-1/4, 1-1/2 in Inlet, 115 V, 1 Phase
3 Years
Integral flow check
For Heating
NSF Certified
Product Details
Attributes
Features
Resources
Taco®, 0015-MSSF3-1IFC, 3-Speed Circulator with Integral Flow Check, Stainless Steel, Series: 00, 0 to 18 gpm Flow Rate, 3/4, 1, 1-1/4, 1-1/2 in Inlet, 17 ft Maximum Head, 115 V, 0.71 to 0.98 A, 60 Hz Frequency, 1 ph, 1590 to 4830 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Carbon Bearing, 6-3/8 in H x 5-3/8 in W x 6 in D Dimensions
Amperage Rating:
0.71 to 0.98 A
Bearing Type:
Carbon
Country Of Origin:
US
Dimensions:
6-3/8 in H x 5-3/8 in W x 6 in D
Flow Rate:
0 to 18 gpm
Frequency Rating:
60 Hz
HP Rating:
1/20 hp
Impeller Type:
Non-Metallic
Inlet Size:
3/4, 1, 1-1/4, 1-1/2 in
Maximum Head:
17 ft
Motor Speed:
1590 to 4830 rpm
Mounting Type:
Flange
Phase:
1
Series:
00
Temperature Rating:
40 to 230 deg F
Type:
Stainless Steel
Voltage Rating:
115 V
- Removable high-flow Integral Flow Check IFC
- Quiet, efficient operation
- Wide range of applications
- Highest performance & starting torque in class
- Heavy duty construction for longer life
- 3-Speed Switch
- Integral flow check
- Drop-in replacement for most commonly used residential circulators
- Self-lubricating and No mechanical seal
- Fine tune to system requirements
- Stainless steel, flanged construction
- Replaceable cartridge design
- Unique, replaceable cartridge is field serviceable
- Self-lubricating, no mechanical seal
Product Details
Taco®, 0015-MSSF3-1IFC, 3-Speed Circulator with Integral Flow Check, Stainless Steel, Series: 00, 0 to 18 gpm Flow Rate, 3/4, 1, 1-1/4, 1-1/2 in Inlet, 17 ft Maximum Head, 115 V, 0.71 to 0.98 A, 60 Hz Frequency, 1 ph, 1590 to 4830 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Carbon Bearing, 6-3/8 in H x 5-3/8 in W x 6 in D Dimensions
Attributes
Amperage Rating: 0.71 to 0.98 A
Bearing Type: Carbon
Country Of Origin: US
Dimensions: 6-3/8 in H x 5-3/8 in W x 6 in D
Flow Rate: 0 to 18 gpm
Frequency Rating: 60 Hz
HP Rating: 1/20 hp
Impeller Type: Non-Metallic
Inlet Size: 3/4, 1, 1-1/4, 1-1/2 in
Maximum Head: 17 ft
Motor Speed: 1590 to 4830 rpm
Mounting Type: Flange
Phase: 1
Series: 00
Temperature Rating: 40 to 230 deg F
Type: Stainless Steel
Voltage Rating: 115 V
Features
- Removable high-flow Integral Flow Check IFC
- Quiet, efficient operation
- Wide range of applications
- Highest performance & starting torque in class
- Heavy duty construction for longer life
- 3-Speed Switch
- Integral flow check
- Drop-in replacement for most commonly used residential circulators
- Self-lubricating and No mechanical seal
- Fine tune to system requirements
- Stainless steel, flanged construction
- Replaceable cartridge design
- Unique, replaceable cartridge is field serviceable
- Self-lubricating, no mechanical seal
