TACO 006-B4-PNP 3/4 SW BRONZE PUMP WITH LINE CORD PKG PLUMB N PLUG
Product Details
Attributes
Features
Resources

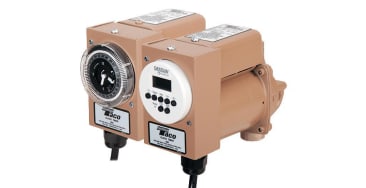

Taco®, 006-B4-PNP, Hot Water Circulator, Bronze, Series: 6 Series, 11.5 gpm Flow Rate, 3/4 in C Inlet, 3/4 in C Outlet, 9-1/2 ft Maximum Head, 1/40 hp Power, 115 VAC, 0.52 A, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, 6 ft Line Cord, Non-Metallic Impeller, Sweat Mounting, 40 to 220 deg F, Carbon Bearing, 7-1/4 in L x 3-5/18 in W x 5-1/4 in H Dimensions
Taco® Plumb n' Plug® (PNP) Circulators periodically recirculate hot water through the domestic water piping system to decrease the delivery time to outlet fixtures and reduce wasted water. These UL listed units feature quiet, efficient operation and low power consumption. Self lubricating, with no mechanical seal and Taco's unique replaceable cartridge design, Plumb n' Plug® circulators are field serviceable and maintenance free. An optional Aquastat is available for constant circulation applications to maintain temperature between 95 deg F and 115 deg F.
- Compact design
- Direct drive - low power consumption
- Unique replaceable cartridge design - field serviceable
- Unmatched reliability - maintenance free
- Sweat connections with bronze casing
- Union and threaded connections of stainless steel
- Steel stator housing
- Non metallic impeller
- Ceramic shaft, carbon bearing
- EPDM O-ring and gaskets
- Motor - single phase, permanent split capacitor, impedance protected
- Analog timer
- Plumbing and plug
- Bronze construction
- Quiet, Efficient Operation
- No Mechanical Seal
- Self Lubricating
- Standard High Capacity Output
Product Details
Taco®, 006-B4-PNP, Hot Water Circulator, Bronze, Series: 6 Series, 11.5 gpm Flow Rate, 3/4 in C Inlet, 3/4 in C Outlet, 9-1/2 ft Maximum Head, 1/40 hp Power, 115 VAC, 0.52 A, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, 6 ft Line Cord, Non-Metallic Impeller, Sweat Mounting, 40 to 220 deg F, Carbon Bearing, 7-1/4 in L x 3-5/18 in W x 5-1/4 in H Dimensions
Taco® Plumb n' Plug® (PNP) Circulators periodically recirculate hot water through the domestic water piping system to decrease the delivery time to outlet fixtures and reduce wasted water. These UL listed units feature quiet, efficient operation and low power consumption. Self lubricating, with no mechanical seal and Taco's unique replaceable cartridge design, Plumb n' Plug® circulators are field serviceable and maintenance free. An optional Aquastat is available for constant circulation applications to maintain temperature between 95 deg F and 115 deg F.
Attributes
Features
- Compact design
- Direct drive - low power consumption
- Unique replaceable cartridge design - field serviceable
- Unmatched reliability - maintenance free
- Sweat connections with bronze casing
- Union and threaded connections of stainless steel
- Steel stator housing
- Non metallic impeller
- Ceramic shaft, carbon bearing
- EPDM O-ring and gaskets
- Motor - single phase, permanent split capacitor, impedance protected
- Analog timer
- Plumbing and plug
- Bronze construction
- Quiet, Efficient Operation
- No Mechanical Seal
- Self Lubricating
- Standard High Capacity Output
