TACO 0013-MSF2-IFC 1/6HP 3 SPEED CAST IRON CIRCULATOR
Product Details
Attributes
Features
Resources
Taco®, 0013-MSF1-IFC, Cartridge Circulator Pump, 3 Speed Cast Iron, Series: 13 Series, 34 gpm Flow Rate, 3/4, 1, 1-1/4, 1-1/2 in Inlet, 3/4, 1, 1-1/4, 1-1/2 in Outlet, 33 ft Maximum Head, 1/6 hp Power, 115 VAC, 2 A, 60 Hz Frequency, 1 ph, 150 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Carbon Bearing, 7-1/4 in L x 6-1/2 in H Dimensions

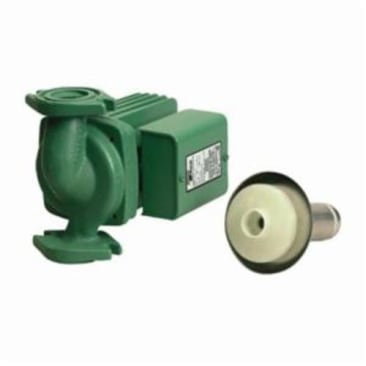

The Taco® Model 0013 cartridge circulator is specifically designed for high-head/high-flow applications in large residential/light commercial systems. Exclusive, Anti Condensate Baffle (ACB) protects motor windings on chilled water jobs. Available in cast iron or stainless steel construction stainless steel should be used on open-loop systems. Unique, 00 family replaceable cartridge contains all of the moving parts so you can service it easily instead of replacing the entire unit. Universal flange-to-flange dimensions and orientation allow the 0013 to easily replace other models.
- Exclusive ACB anti-condensate baffle with ambient air flow-protects motor windings against condensate buildup
- High velocity performance compact design
- Unique replaceable cartridge design-field serviceable
- No mechanical seal
- Universal flange to flange dimensions
- Non-ferrous ACB baffle
- Cast iron and stainless steel casing
- Stator housing
- Non metallic impeller
- Ceramic shaft
- Carbon bearings
- EPDM O-ring and gaskets
- Integral Flow Check Prevents gravity flow Eliminates separate in-line flow check Reduces installed cost, easy to service Improved performance vs. In-line flow checks
- Unmatched reliability - Maintenance free
- Quiet, efficient operation
- Direct drive-Low power consumption
- Self lubricating, No mechanical seal
- Standard high capacity output
- Wide range of applications
- Cast Iron or St. Steel construction, Flanged
Product Details
Taco®, 0013-MSF1-IFC, Cartridge Circulator Pump, 3 Speed Cast Iron, Series: 13 Series, 34 gpm Flow Rate, 3/4, 1, 1-1/4, 1-1/2 in Inlet, 3/4, 1, 1-1/4, 1-1/2 in Outlet, 33 ft Maximum Head, 1/6 hp Power, 115 VAC, 2 A, 60 Hz Frequency, 1 ph, 150 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Carbon Bearing, 7-1/4 in L x 6-1/2 in H Dimensions
The Taco® Model 0013 cartridge circulator is specifically designed for high-head/high-flow applications in large residential/light commercial systems. Exclusive, Anti Condensate Baffle (ACB) protects motor windings on chilled water jobs. Available in cast iron or stainless steel construction stainless steel should be used on open-loop systems. Unique, 00 family replaceable cartridge contains all of the moving parts so you can service it easily instead of replacing the entire unit. Universal flange-to-flange dimensions and orientation allow the 0013 to easily replace other models.
Attributes
Features
- Exclusive ACB anti-condensate baffle with ambient air flow-protects motor windings against condensate buildup
- High velocity performance compact design
- Unique replaceable cartridge design-field serviceable
- No mechanical seal
- Universal flange to flange dimensions
- Non-ferrous ACB baffle
- Cast iron and stainless steel casing
- Stator housing
- Non metallic impeller
- Ceramic shaft
- Carbon bearings
- EPDM O-ring and gaskets
- Integral Flow Check Prevents gravity flow Eliminates separate in-line flow check Reduces installed cost, easy to service Improved performance vs. In-line flow checks
- Unmatched reliability - Maintenance free
- Quiet, efficient operation
- Direct drive-Low power consumption
- Self lubricating, No mechanical seal
- Standard high capacity output
- Wide range of applications
- Cast Iron or St. Steel construction, Flanged
