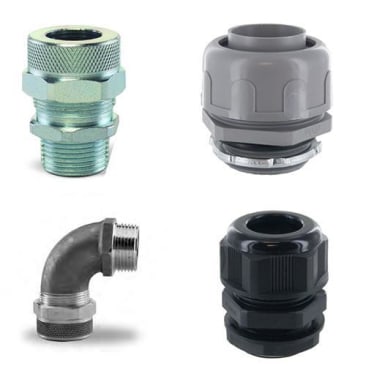

TECHSPAN RSR-1212 CORD GRIP ALUMINUM 1/2IN 9/16-3/4
MFR Part #: RSR-1212
SKU #: 1133161
Brand: Techspan® | Remke
UPC: 77685617944
Remke by Techspan® Tuff Seal™ RSR-1212 Straight Flexible Cord Connector, 1/2 in Trade, 3/4 Conductors, 0.71 to 0.725 in Cable Openings, Aluminum, Nickel Plated
For use in corrosive environments
UL Listed|CSA Certified|RoHS Compliant
Product Details
Attributes
Features
Resources
Remke by Techspan® Tuff Seal™ Flexible Cord Connector, Straight, Series: RSR, 1/2 in Trade, 3/4 Conductors, 0.71 to 0.725 in Cable Openings, S/STO/SO Cable, NPT, Aluminum, Nickel Plated, -40 to 149 deg C, 1.37 in Dia
Cable Openings:
0.71 to 0.725 in
Cable Type:
S/STO/SO
Connection Type:
NPT
Country Of Origin:
US
Dimensions:
1.37 in Dia
Finish:
Nickel Plated
Material:
Aluminum
Number of Conductors:
3/4
Series:
RSR
Temperature Rating:
-40 to 149 deg C
Trade Size:
1/2 in
Type:
Straight
- Tuff seal RSR cord grips protect cable from damage and pullout and are used in conduit hubs or knock-outs at the point where the electrical cable is to be terminated
- Providing exceptional corrosion resistance and high wear resistance, nickel-plated connectors also feature an attractive finish similar to that of polished stainless steel
- For applications known for their severe conditions such as oil and gas, marine, food and chemical processing
- 0.54 in thread length
- 1.55 in nut size
- 0.62 in inside body diameter
- 3 form size
- UL 94V-2 flammability rating
Product Details
Remke by Techspan® Tuff Seal™ Flexible Cord Connector, Straight, Series: RSR, 1/2 in Trade, 3/4 Conductors, 0.71 to 0.725 in Cable Openings, S/STO/SO Cable, NPT, Aluminum, Nickel Plated, -40 to 149 deg C, 1.37 in Dia
Attributes
Cable Openings: 0.71 to 0.725 in
Cable Type: S/STO/SO
Connection Type: NPT
Country Of Origin: US
Dimensions: 1.37 in Dia
Finish: Nickel Plated
Material: Aluminum
Number of Conductors: 3/4
Series: RSR
Temperature Rating: -40 to 149 deg C
Trade Size: 1/2 in
Type: Straight
Features
- Tuff seal RSR cord grips protect cable from damage and pullout and are used in conduit hubs or knock-outs at the point where the electrical cable is to be terminated
- Providing exceptional corrosion resistance and high wear resistance, nickel-plated connectors also feature an attractive finish similar to that of polished stainless steel
- For applications known for their severe conditions such as oil and gas, marine, food and chemical processing
- 0.54 in thread length
- 1.55 in nut size
- 0.62 in inside body diameter
- 3 form size
- UL 94V-2 flammability rating
