TECHSPAN BLU6S8 SH COPPER LUG 6STR 5/16 BLUE 1 HOLE
MFR Part #: BLU6S8
SKU #: 1164054
Brand: Techspan® | Penn-Union™
UPC: 77685614158

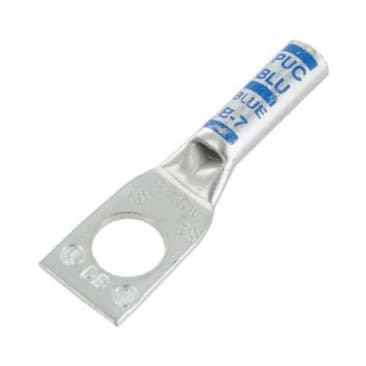

Penn-Union™ by Techspan® BLU6S8 Type BLU-S Compression Lug With Inspection Window, 6 AWG, 3/8 in Stud, Copper
CSA Certified | RoHS Compliant | UL Listed
Product Details
Attributes
Features
Resources
Penn-Union™ by Techspan® Compression Lug, Type BLU-S, 6 AWG Conductor, 3/8 in Stud, 1-Hole Tongue, 0.88 in L x 0.6 in W x 0.06 in THK Tongue, 1.97 in Overall Length, Standard Barrel, 0.81 in L Barrel, Copper, Blue
Barrel Size:
0.81 in L
Barrel Type:
Standard
Color:
Blue
Conductor Size:
6 AWG
Material:
Copper
Overall Length:
1.97 in
Stud Size:
3/8 in
Tongue Size:
0.88 in L x 0.6 in W x 0.06 in THK
Tongue Type:
1-Hole
Type:
Type BLU-S
- Manufactured from high conductivity seamless copper tubing
- TiN coated to inhibit corrosion
- Beveled entry for easy cable insertion
- Inspection window to ensure full cable insertion
- Color coded barrels are marked with die index numbers
- Connectors are suitable for voltages up to 35 kV
- 45 and 90 deg angles are UL listed and CSA certified
- Connectors are UL listed and CSA certified with Penn-Union™ by Techspan®, BURNDY®, T and B, huskie, Greenlee® and Versa-Crimp® style tooling
