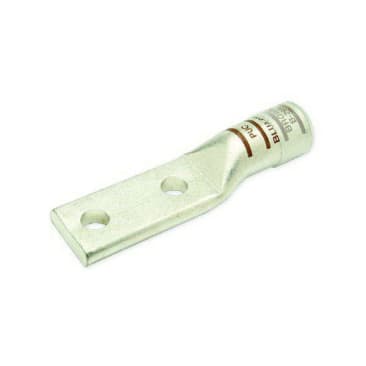

TECHSPAN BLUA025D ALUMINUM LUG 250MCM 1/2INCH RED 2HOLE
MFR Part #: BLUA025D
SKU #: 1123299
Brand: Techspan® | Penn-Union™
UPC: 77685614165
Penn-Union™ by Techspan® BLUA025D Type BLUA-D Compression Lug, 250 kcmil, 1/2 in Stud, Aluminum
CSA Certified | RoHS Compliant | UL Listed
Product Details
Attributes
Features
Resources
Penn-Union™ by Techspan® Compression Lug, Type BLUA-D, 250 kcmil Conductor, 1/2 in Stud, 2-Hole Tongue, 2.91 in L x 1.25 in W x 0.33 in THK Tongue, 5.2 in Overall Length, Standard Barrel, 1.79 in L Barrel, Aluminum, Red
Barrel Size:
1.79 in L
Barrel Type:
Standard
Color:
Red
Conductor Size:
250 kcmil
Material:
Aluminum
Overall Length:
5.2 in
Stud Size:
1/2 in
Tongue Size:
2.91 in L x 1.25 in W x 0.33 in THK
Tongue Type:
2-Hole
Type:
Type BLUA-D
- Manufactured from seamless aluminum tubing
- TiN coated and factory pre-installed with oxide inhibitor compound
- Beveled entry for easy cable insertion
- Color coding conforms to industry standards ensuring proper die selection and providing for a faster installation
- Connectors are marked with catalog number, wire size, die index and crimp locations
- Connectors are suitable for voltages up to 35 kV
- End caps provided to prevent foreign materials from entering and contaminating the connector prior to usage
- Connectors are UL listed and CSA certified with Penn-Union™ by Techspan®, BURNDY®, T and B, huskie and Greenlee® tooling
Product Details
Penn-Union™ by Techspan® Compression Lug, Type BLUA-D, 250 kcmil Conductor, 1/2 in Stud, 2-Hole Tongue, 2.91 in L x 1.25 in W x 0.33 in THK Tongue, 5.2 in Overall Length, Standard Barrel, 1.79 in L Barrel, Aluminum, Red
Attributes
Barrel Size: 1.79 in L
Barrel Type: Standard
Color: Red
Conductor Size: 250 kcmil
Material: Aluminum
Overall Length: 5.2 in
Stud Size: 1/2 in
Tongue Size: 2.91 in L x 1.25 in W x 0.33 in THK
Tongue Type: 2-Hole
Type: Type BLUA-D
Features
- Manufactured from seamless aluminum tubing
- TiN coated and factory pre-installed with oxide inhibitor compound
- Beveled entry for easy cable insertion
- Color coding conforms to industry standards ensuring proper die selection and providing for a faster installation
- Connectors are marked with catalog number, wire size, die index and crimp locations
- Connectors are suitable for voltages up to 35 kV
- End caps provided to prevent foreign materials from entering and contaminating the connector prior to usage
- Connectors are UL listed and CSA certified with Penn-Union™ by Techspan®, BURNDY®, T and B, huskie and Greenlee® tooling
