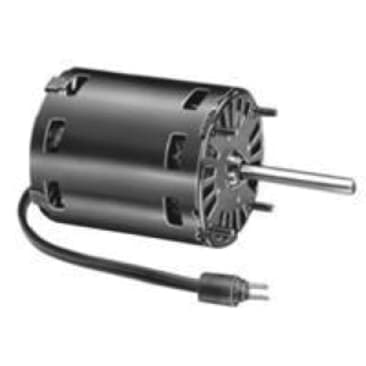

FASCO FASD1124 Image 1

FASCO FASD1124 1/20 115 1550 OAO CWSE C/W LYALL MOTOR

MFR Part #: FASD1124
SKU #: 1181011
Brand: Fasco®
UPC: 400008708357
Fasco® FASD1124 Evaporator Coil and Refrigeration Fan Motor, 208 to 230 VAC, 2.1 A, 1/20 hp, 1550 rpm Speed, 0.04 kW

Fasco® Evaporator Coil and Refrigeration Fan Motor, 208 to 230 VAC, 2.1 A, 1/20 hp, 1550 rpm, 0.04 kW, 1 ph Phase, 60 Hz, OAO Motor Enclosure, 5/16 in Dia x 3 in L Shaft, Clockwise Shaft End Rotation, 1 Speed, Flat Shaft Type, Sleeve Bearing, Extended Studs Mounting, Air Over, B Insulation Class, 4 Poles, 1 Service Factor, Across the Line Starting Method, Steel, 40 deg C, 3.3 in Dia x 6.37 in L

Product Details

Fasco® Evaporator Coil and Refrigeration Fan Motor, 208 to 230 VAC, 2.1 A, 1/20 hp, 1550 rpm, 0.04 kW, 1 ph Phase, 60 Hz, OAO Motor Enclosure, 5/16 in Dia x 3 in L Shaft, Clockwise Shaft End Rotation, 1 Speed, Flat Shaft Type, Sleeve Bearing, Extended Studs Mounting, Air Over, B Insulation Class, 4 Poles, 1 Service Factor, Across the Line Starting Method, Steel, 40 deg C, 3.3 in Dia x 6.37 in L

Attributes

Amperage Rating2.1 A
Dimensions3.3 in Dia x 6.37 in L
Frequency Rating60 Hz
MaterialSteel
Number of Poles4
Power Rating.04 kW
Temperature Rating40 deg C
Voltage Rating208 to 230 VAC
Bearing TypeSleeve
Duty TypeAir Over
HP Rating1/20 hp
Insulation ClassB
Motor Enclosure TypeOAO
Mounting TypeExtended Studs
Number of Speeds1
Phase1 ph
Rotation TypeClockwise Shaft End
Service Factor1
Shaft Size5/16 in Dia x 3 in L
Shaft TypeFlat
Speed Rating1550 rpm
Starting MethodAcross the Line
