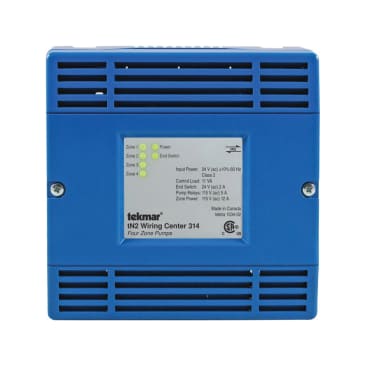

TEKMAR 314 TN2 WIRING CENTRE 4 ZONES PUMPS
Product Details
Attributes
Features
Resources
Tekmar® tekmarNet®2 Wiring Center, 4 Zones, 24 VAC, For Use With: tekmarNet® 2 Thermostats, 5-1/2 in Height, 5-1/2 in Width, 2-1/4 in D
The tekmarNet® 2 Wiring Center 314 is designed to provide a zoning solution for heating systems. It can be used in applications ranging from baseboard zones, to radiant heating zones. This product provides power for up to four tekmarNet® 2 thermostats and up to four 115 VAC zones pump outputs, as well as providing an end switch closure to enable an external device such as a boiler. An outdoor sensor input is included and provides the outdoor air temperature reading on each thermostat when an optional outdoor sensor is installed.
- External diagnostic LEDs
- Four 115 VAC powered pump outputs
- Isolated end switch
- Only requires 2 wires per zone
- Outdoor sensor input
- Supports two-stage tekmarNet®2 thermostats
- tN4 expansion terminals
Product Details
Tekmar® tekmarNet®2 Wiring Center, 4 Zones, 24 VAC, For Use With: tekmarNet® 2 Thermostats, 5-1/2 in Height, 5-1/2 in Width, 2-1/4 in D
The tekmarNet® 2 Wiring Center 314 is designed to provide a zoning solution for heating systems. It can be used in applications ranging from baseboard zones, to radiant heating zones. This product provides power for up to four tekmarNet® 2 thermostats and up to four 115 VAC zones pump outputs, as well as providing an end switch closure to enable an external device such as a boiler. An outdoor sensor input is included and provides the outdoor air temperature reading on each thermostat when an optional outdoor sensor is installed.
Attributes
Features
- External diagnostic LEDs
- Four 115 VAC powered pump outputs
- Isolated end switch
- Only requires 2 wires per zone
- Outdoor sensor input
- Supports two-stage tekmarNet®2 thermostats
- tN4 expansion terminals
