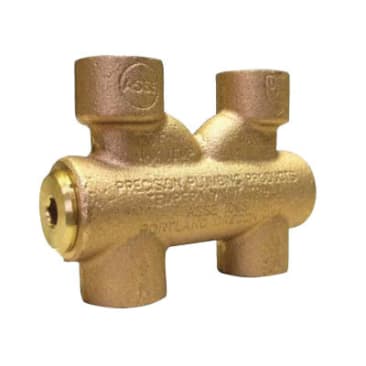

PRECISION TRB-2 Image 1

PRECISION TRB-2 PPP TEMPERA ANTI-SCALD VALVE

MFR Part #: TRB-2
SKU #: 0249145
Brand: PPP®
UPC: 671411500016
PPP® Tempera™ TRB-2 Pressure Balance Valve, 1/2 in Nominal, FNPT End Style, Brass Body
Meets ASSE Standard 1066 individual in-line pressure balancing valves | ASTM B584 Alloy C84400 External Body | ISO 9001 | ISO 14001 | UPC Listed | PROP65: Cancer and Reproductive harm www.p65warnings.ca.gov.

PPP® Tempera™ Pressure Balance Valve, 1/2 in Nominal, FNPT, Full Port, Media: Water, Brass Body

The Tempera Valve is a highly sensitive pressure balancing valve that holds a selected water temperature to within +/-3 deg F. It responds instantly to all line pressure loss on either the hot or cold side. Tempera Valves may be installed in any position or at any angle. TheTRB-2 must be installed ahead of the control valve(s). The flow pattern is indicated by arrows imprinted in the valve body.

Product Details

PPP® Tempera™ Pressure Balance Valve, 1/2 in Nominal, FNPT, Full Port, Media: Water, Brass Body

The Tempera Valve is a highly sensitive pressure balancing valve that holds a selected water temperature to within +/-3 deg F. It responds instantly to all line pressure loss on either the hot or cold side. Tempera Valves may be installed in any position or at any angle. TheTRB-2 must be installed ahead of the control valve(s). The flow pattern is indicated by arrows imprinted in the valve body.

Attributes

Body MaterialBrass
End StyleFNPT
MediaWater
Nominal Size1/2 in
Port TypeFull

Features

  • Automatic pressure compensating, preventing thermal shock
  • Can be used with single or two handle mixing valve assemblies
  • Holds a selected water temperature to within +/- 3 deg F regardless of pressure change
  • Fully ported valve with minimal pressure drop
  • Safe because it is a pressure balancing valve, not a thermostatic mixing valve
