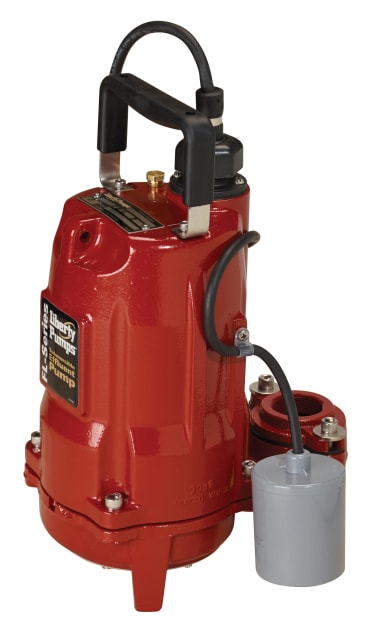

LIBERTY FL51A-2 Image 1

LIBERTY FL51A-2 SUB EFF PUMP 1/2HP 25FT CORD 115V AUTO

MFR Part #: FL51A-2
SKU #: 1154498
Brand: Liberty Pumps®
UPC: 671812102963
Liberty Pumps® FL51A-2 FL50, 92 gpm Max Flow, 15 ft Rated Head, Automatic, 55 ft Max Head, 115 VAC, 1 Phase
3 Years Limited
Step Systems, Mound Systems, Liquid Waste Transfer and Higher Head Dewatering Applications
cCSAus Certified | SSPMA Certified | PROP65: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Liberty Pumps®, FL51A-2, Mid-Range Head, Series: FL50, 92 gpm Maximum, 15 ft Rated Head, Automatic/Non Automatic: Automatic, 1-1/2 in FNPT Outlet, 55 ft Maximum Head, 1/2 hp, 115 VAC, 12 A Full Load/48.6 A Locked Rotor, 60 Hz Frequency, 1 ph, 3450 rpm Motor, SJTW 25 ft Cord, Cast Iron Multi-Vane Semi-Open Impeller, 248 deg F Thermal Overload, NEMA 4X Enclosure, Ball/Race Bearing, 11.2 in W x 7 in D x 16.4 in H Dimensions

The FL50 series by Liberty is a mid-range effluent pump designed for STEP systems, mound systems, liquid waste transfer and higher head de-watering applications. Built of heavy cast iron with an epoxy powder coat finish and stainless steel fasteners, the FL50 will provide years of reliable performance.

Product Details

Liberty Pumps®, FL51A-2, Mid-Range Head, Series: FL50, 92 gpm Maximum, 15 ft Rated Head, Automatic/Non Automatic: Automatic, 1-1/2 in FNPT Outlet, 55 ft Maximum Head, 1/2 hp, 115 VAC, 12 A Full Load/48.6 A Locked Rotor, 60 Hz Frequency, 1 ph, 3450 rpm Motor, SJTW 25 ft Cord, Cast Iron Multi-Vane Semi-Open Impeller, 248 deg F Thermal Overload, NEMA 4X Enclosure, Ball/Race Bearing, 11.2 in W x 7 in D x 16.4 in H Dimensions

The FL50 series by Liberty is a mid-range effluent pump designed for STEP systems, mound systems, liquid waste transfer and higher head de-watering applications. Built of heavy cast iron with an epoxy powder coat finish and stainless steel fasteners, the FL50 will provide years of reliable performance.

Attributes

Country Of Origin: US
Horsepower: 1/2 hp
Maximum Flow Rate: 92 gpm
Maximum Head: 55 ft
Outlet Size: 1-1/2 in FNPT
Amperage Rating: 12 A Full Load/48.6 A Locked Rotor
Automatic/Non Automatic: Automatic
Bearing Type: Ball/Race
Cord Type: SJTW 25 ft
Dimensions: 11.2 in W x 7 in D x 16.4 in H
Enclosure Type: NEMA 4X
Frequency Rating: 60 Hz
Impeller Type: Cast Iron Multi-Vane Semi-Open
Material: Cast Iron
Motor Speed: 3450 rpm
Phase: 1
Rated Head: 15 ft
Series: FL50
Temperature Rating: 248 deg F Thermal Overload
Type: Mid-Range Head
Voltage Rating: 115 VAC

Features

  • Semi-open impeller permits passage of solids without clogging
  • Cast iron construction with all stainless and brass fasteners
  • 416 stainless steel rotor shaft
  • Oil filled hermetically sealed motor
  • Permanently lubricated upper and lower ball bearings
  • Unitized carbon and ceramic shaft seal
  • 25 ft quick connect power cord
  • 3/4 in solid handling
  • Class B stator winding
  • Buna-N O-ring
  • 140 deg F fluid temperature
