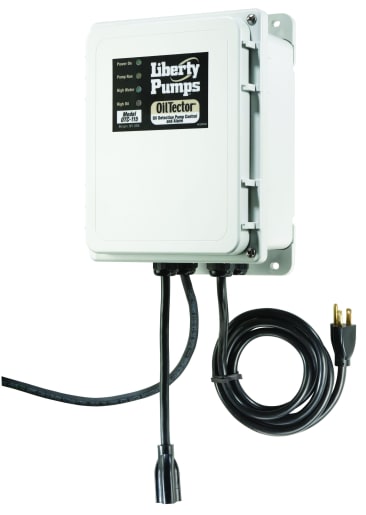

LIBERTY ELV280 Image 1

LIBERTY ELV280 1/2HP CI SUMP PUMP 115V W/OILTECTOR CTRL/ALRM

MFR Part #: ELV280
SKU #: 1154458
Brand: Liberty Pumps®
UPC: 671812114850
Liberty Pumps® ELV280 ELV, 63 gpm Flow Rate, 1-1/2 in Outlet, 1 Phase , 1/2 hp, Cast Iron
3 Years Limited
ASME A17.1 | cCSAus Certified | cULus Listed | SSPMA Certified | PROP65: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Liberty Pumps®, ELV280, Series: ELV, 63 gpm Flow Rate, 1-1/2 in Outlet, 1/2 hp, 115 VAC, 8 A, 60 Hz Frequency, 1 ph, 3450 rpm Motor, 25 ft Cord, Vortex Impeller, 221 deg F Thermal Overload, Ball/Race Bearing, Cast Iron

The ELV series sump pumps are designed and approved for safe operation of pumping, alarming and monitoring of elevator sump pits, transformer vaults and other applications where oil and water must be detected. The OilTector® system will activate the pump to remove water from elevator pits in accordance with ASME A17.1 and will provide pumping of only water even if an oil condition is detected. The OilTector® cycles the pump only in the water range. Oil and other harmful floating substances are not discharged into the environment. An alarm is activated in the event of a high water condition or high oil condition.

Product Details

Liberty Pumps®, ELV280, Series: ELV, 63 gpm Flow Rate, 1-1/2 in Outlet, 1/2 hp, 115 VAC, 8 A, 60 Hz Frequency, 1 ph, 3450 rpm Motor, 25 ft Cord, Vortex Impeller, 221 deg F Thermal Overload, Ball/Race Bearing, Cast Iron

The ELV series sump pumps are designed and approved for safe operation of pumping, alarming and monitoring of elevator sump pits, transformer vaults and other applications where oil and water must be detected. The OilTector® system will activate the pump to remove water from elevator pits in accordance with ASME A17.1 and will provide pumping of only water even if an oil condition is detected. The OilTector® cycles the pump only in the water range. Oil and other harmful floating substances are not discharged into the environment. An alarm is activated in the event of a high water condition or high oil condition.

Attributes

Country Of Origin: US
Flow Rate: 63 gpm
Horsepower: 1/2 hp
Voltage Rating: 115 VAC
Amperage Rating: 8 A
Bearing Type: Ball/Race
Cord Type: 25 ft
Frequency Rating: 60 Hz
Impeller Type: Vortex
Material: Cast Iron
Motor Speed: 3450 rpm
Outlet Size: 1-1/2 in
Phase: 1
Series: ELV
Temperature Rating: 221 Deg F Thermal Overload

Features

  • Complete packaged system
  • Remote alarm
  • Easy clamp mount installation, with plug-in ready wiring
  • Class B stator winding
  • 18 in diameter x 30 in sump
  • Automatic operation
  • Application ideal for elevators, garages and areas where the discharge of oil/hydrocarbons into the environment is prohibited

Resources

Instruction/Installation Manual
Specification Sheet
