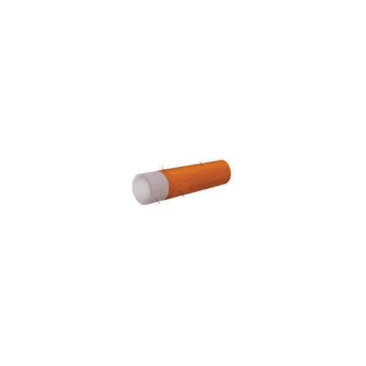

WATTS 81007367 Image 1

WATTS 81007367 PB032161-20 1 X 20 O2 BARRIER PEX

MFR Part #: 81007367
SKU #: 1162783
Brand: WATTS® | Watts Radiant™
UPC: 840213081669
Watts Radiant™ RadiantPEX+™ 81007367 Cross-Linked Tubing With EVOH Barrier, 1 in Nominal, PEX End Style, 20 ft L, Polyethylene, Domestic
25 years
Residential, Commercial Heating and Snow Melting Application
ASTM F-876 and F-877 | ASTM E-84 (Standard Test Method for Surface Burning Characteristics of Building Materials) | Certified to the Uniform Mechanical Code by NSF | Certified to CSA B137.5 by NSF | International Code Council Evaluation Service (ICC) to Report PMG-1008 which give compliance to IMC/UMC and IRC | NSF-14 (rfh) | UL 263 (Fire Tests of Building Construction and Materials) | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Watts Radiant™ RadiantPEX+™ Cross-Linked Tubing, 1 in Nominal, PEX, 20 ft Length, Polyethylene, Domestic

This 1 inch x 20 foot coil of RadiantPEX+ (TM) is used for radiant heating, snow melting, supply and return piping. It is an integral ethylene vinyl alcohol din standard O2 barrier that limits oxygen diffusion through the wall of the tubing. It has a protective polypropylene layer to the outside of the EVOH oxygen barrier. It is rated maximum temperature 200 degrees F and maximum pressure rating 160 psi.

Product Details

Watts Radiant™ RadiantPEX+™ Cross-Linked Tubing, 1 in Nominal, PEX, 20 ft Length, Polyethylene, Domestic

This 1 inch x 20 foot coil of RadiantPEX+ (TM) is used for radiant heating, snow melting, supply and return piping. It is an integral ethylene vinyl alcohol din standard O2 barrier that limits oxygen diffusion through the wall of the tubing. It has a protective polypropylene layer to the outside of the EVOH oxygen barrier. It is rated maximum temperature 200 degrees F and maximum pressure rating 160 psi.

Attributes

Country Of Origin: US
Domestic/Import: Domestic
End Style: PEX
Material: Polyethylene

Features

  • 1 inch WattsPEX+™ has an outer layer for superior protection, this outer layer adds several benefits - Easier to pull through joist
  • Reduces expansion noise inch walls and floors
  • Protects the oxygen barrier from job-site abuse
  • Oxygen Barrier PEX Tubing for radiant heating, snowmelting, and supply and return piping
  • Rated maximum temperature 200 deg F
  • Maximum pressure rating 160 psi

Resources

Instruction/Installation Manual
Specification Sheet
