WATTS 81009361 PB032161-300 1 X 300 O2 BARRIER PEX
Product Details
Attributes
Features
Resources

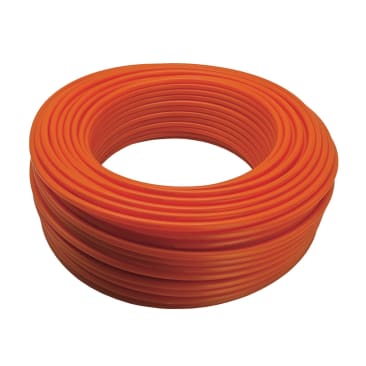

Watts Radiant™ RadiantPEX+™ Barrier Tubing, 4-Layer, 1 in Nominal, 7/8 in Inside Dia, 1-1/8 in Outside Dia, 300 ft Length, 1/8 in Wall Thickness, PEX, Orange
This 1 inch x 300 foot coil of RadiantPEX+ (TM) is used for radiant heating, snow melting, supply and return piping. It is an integral ethylene vinyl alcohol din standard O2 barrier that limits oxygen diffusion through the wall of the tubing. It has a protective polypropylene layer to the outside of the EVOH oxygen barrier. It is rated maximum temperature 200 degrees F and maximum pressure rating 160 psi.
- 3.04 gal fluid capacity per 100 ft
- Easier to pull through joists
- Reduces expansion noise inch walls and floors
- Protects the oxygen barrier from job-site abuse
- Cross-Linked Polyethylene Tubing with/EVOH Barrier
- Rated maximum temperature 200 deg F
- Maximum pressure rating 160 psi
Product Details
Watts Radiant™ RadiantPEX+™ Barrier Tubing, 4-Layer, 1 in Nominal, 7/8 in Inside Dia, 1-1/8 in Outside Dia, 300 ft Length, 1/8 in Wall Thickness, PEX, Orange
This 1 inch x 300 foot coil of RadiantPEX+ (TM) is used for radiant heating, snow melting, supply and return piping. It is an integral ethylene vinyl alcohol din standard O2 barrier that limits oxygen diffusion through the wall of the tubing. It has a protective polypropylene layer to the outside of the EVOH oxygen barrier. It is rated maximum temperature 200 degrees F and maximum pressure rating 160 psi.
Attributes
Features
- 3.04 gal fluid capacity per 100 ft
- Easier to pull through joists
- Reduces expansion noise inch walls and floors
- Protects the oxygen barrier from job-site abuse
- Cross-Linked Polyethylene Tubing with/EVOH Barrier
- Rated maximum temperature 200 deg F
- Maximum pressure rating 160 psi
