WATTS 6550020 LFLM491-101 3/4 IP UNION 60-120F MIXING VALVE
Product Details
Attributes
Features
Resources

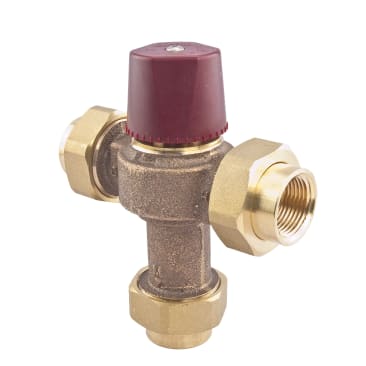

Powers™, 6550020, Thermostatic Tempering Valve, Series: LFLM490, 3/4 in Nominal, FNPT End Style, 125 psi Pressure, 60 to 120 deg F, 0.5 gpm Flow Rate, Brass Body, 5-7/16 in W Dimensions
This lead free HydroGuard(R) thermostatic mixing valve high-capacity design makes it ideal for hot water heaters and multiple lavatory installations. It features a compact design and brass construction, 3/4 inch union NPT female connections, lock-in handle mechanism, paraffin-based actuator, and integral check valves with inlet screens to prevent cross-flow and contamination. The thermostatic element ensures optimal, consistent performance over a wide range of temperatures. The temperature range is 60 to 120 degrees F (16 to 49 degrees C) and the maximum operating pressure is 125 psi (862 kPa).
- Vandal-resistant lockable handle to prevent tampering
- Lead free brass body construction for durability and to comply with lead free installation requirement
- Advanced thermal actuator improves performance at low flow
- Adjustable temperature selection with lock down
- Union connections for easy maintenance
- Integral checks and screen prevents cross-flow and contamination
- The wetted surface of this product contacted by consumable water contains less than 0.25 Percent of lead by weight
Product Details
Powers™, 6550020, Thermostatic Tempering Valve, Series: LFLM490, 3/4 in Nominal, FNPT End Style, 125 psi Pressure, 60 to 120 deg F, 0.5 gpm Flow Rate, Brass Body, 5-7/16 in W Dimensions
This lead free HydroGuard(R) thermostatic mixing valve high-capacity design makes it ideal for hot water heaters and multiple lavatory installations. It features a compact design and brass construction, 3/4 inch union NPT female connections, lock-in handle mechanism, paraffin-based actuator, and integral check valves with inlet screens to prevent cross-flow and contamination. The thermostatic element ensures optimal, consistent performance over a wide range of temperatures. The temperature range is 60 to 120 degrees F (16 to 49 degrees C) and the maximum operating pressure is 125 psi (862 kPa).
Attributes
Features
- Vandal-resistant lockable handle to prevent tampering
- Lead free brass body construction for durability and to comply with lead free installation requirement
- Advanced thermal actuator improves performance at low flow
- Adjustable temperature selection with lock down
- Union connections for easy maintenance
- Integral checks and screen prevents cross-flow and contamination
- The wetted surface of this product contacted by consumable water contains less than 0.25 Percent of lead by weight
