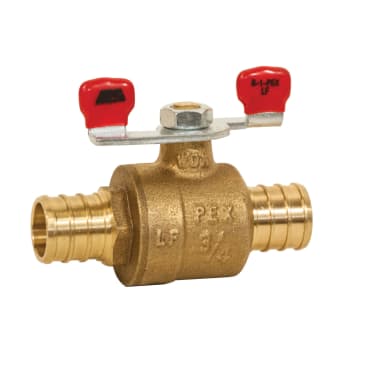

MAS B-1-PEX-LF-3/4 Image 1

MAS 013-50073 3/4 PEX MINI BALL VLV B-1-PEX-LF

MFR Part #: B-1-PEX-LF-3/4
SKU #: 1118707
Brand: MAS™
UPC: 777701133657
MAS™ B Series B-1-PEX-LF-3/4 Mini-Ball Valve, 3/4 in, PEX, Brass, 400 psi
3 Year Limited
ASME 112.4.14|CSA B125.3-12/B137.5|cUPC Listed|NSF/ANSI 61/372

MAS™ Mini-Ball Valve, B Series, 3/4 in Nominal, PEX Connection, Reduced Port, 400 psi, Gas, Oil, Water Media, 2.69 in Inlet to Outlet Length, 1.437 in Top to Inlet Center, 0.52 in Opening, Wing Handle Operator, 13 Cv Flow Coefficient (Cv), Material Standard: ASTM A36, ASTM B432 C46500, ASTM F1807, Brass Body, PTFE Seat, Brass Stem, Steel Handle, Brass Ball, NBR Softgoods, Lead-Free, 0.667 in OD

Product Details

MAS™ Mini-Ball Valve, B Series, 3/4 in Nominal, PEX Connection, Reduced Port, 400 psi, Gas, Oil, Water Media, 2.69 in Inlet to Outlet Length, 1.437 in Top to Inlet Center, 0.52 in Opening, Wing Handle Operator, 13 Cv Flow Coefficient (Cv), Material Standard: ASTM A36, ASTM B432 C46500, ASTM F1807, Brass Body, PTFE Seat, Brass Stem, Steel Handle, Brass Ball, NBR Softgoods, Lead-Free, 0.667 in OD

Attributes

Ball Material: Brass
Body Material: Brass
Connection Type: PEX
Dimensions: 0.667 in OD
Flow Coefficient (Cv): 13 Cv
Handle Material: Steel
Inlet to Outlet Length: 2.69 in
Lead-Free/Contains Lead: Lead-Free
Material Standard: ASTM A36, ASTM B432 C46500, ASTM F1807
Media: Gas, Oil, Water
Nominal Size: 3/4 in
Opening Size: .52 in
Operator Type: Wing Handle
Port Type: Reduced
Pressure Rating: 400 psi
Seat Material: PTFE
Series: B Series
Softgoods Material: NBR
Stem Material: Brass
Top to Inlet Center: 1.437 in

Features

  • Blowout-proof stem design

Resources

Specification Sheet
