MAS 015-10023 3/8 IP SS BALL VLV G-1

Name: MAS 015-10023 3/8 IP SS BALL VLV G-1
Brand: MAS™
SKU: 0547701
Availability: OutOfStock

MFR Part #: 015-10023

SKU #: 0547701

Brand: MAS™

UPC: 620830100031

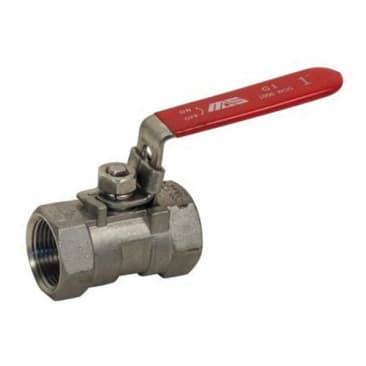

MAS™ G Series 015-10023 Ball Valve, 3/8 in, Threaded, Stainless Steel, 1000 psi

ANSI B1.20.1|NACE MR-0103/MR0175/ISO15156

Product Details
Attributes
Resources

MAS™ Ball Valve, G Series, 3/8 in Nominal, Threaded Connection, Reduced Port, 1000 psi, Gas, Oil, Water Media, Manual Actuator, 1.89 in Inlet to Outlet Length, 1.39 in Top to Inlet Center, 0.26 in Opening, Locking Lever Operator, 3.5 Cv Flow Coefficient (Cv), Material Standard: A351 Grade CF8M, Stainless Steel Body, PTFE Seat, Stainless Steel Stem, PTFE Packing, Stainless Steel Handle, Stainless Steel Ball

Product Details

MAS™ Ball Valve, G Series, 3/8 in Nominal, Threaded Connection, Reduced Port, 1000 psi, Gas, Oil, Water Media, Manual Actuator, 1.89 in Inlet to Outlet Length, 1.39 in Top to Inlet Center, 0.26 in Opening, Locking Lever Operator, 3.5 Cv Flow Coefficient (Cv), Material Standard: A351 Grade CF8M, Stainless Steel Body, PTFE Seat, Stainless Steel Stem, PTFE Packing, Stainless Steel Handle, Stainless Steel Ball

Attributes

Actuator Type: Manual

Ball Material: Stainless Steel

Body Material: Stainless Steel

Connection Type: Threaded

Flow Coefficient (Cv): 3.5 Cv

Handle Material: Stainless Steel

Inlet to Outlet Length: 1.89 in

Material Standard: A351 GRADE CF8M

Media: Gas, Oil, Water

Nominal Size: 3/8 in

Opening Size: .26 in

Operator Type: Locking Lever

Packing Material: PTFE

Port Type: Reduced

Pressure Rating: 1000 psi

Seat Material: PTFE

Series: G Series

Stem Material: Stainless steel

Top to Inlet Center: 1.39 in

Resources

Specification Sheet
