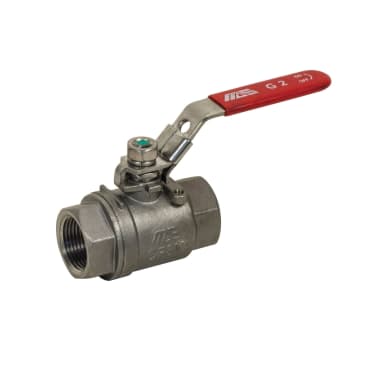

MAS G2-3/8 Image 1

3/8 IP SS BALL VLV G-2 MAS 014-20022

MFR Part #: G2-3/8
SKU #: 0547721
Brand: MAS™
UPC: 620830100123
Please note this item is discontinued (order fulfillment will depend on stock availability): MAS™ G Series G2-3/8 Ball Valve, 3/8 in, NPT, Stainless Steel, 2000 psi
3 Year Limited
ANSI B1.20.1|NACE MR0103/MR0175

MAS™ Ball Valve, G Series, 3/8 in Nominal, NPT Connection, Full Port, 2000 psi, Gas, Oil, Water Media, 2.197 in Inlet to Outlet Length, 1.98 in Top to Inlet Center, 0.378 in Opening, Locking Lever Handle Operator, 7 Cv Flow Coefficient (Cv), Material Standard: ASTM A276 Type 316, ASTM A351 Grade CF8M, Stainless Steel Body, RPTFE Seat, 316 Stainless Steel Stem, PTFE Packing, 304 Stainless Steel Handle, Stainless Steel Ball, PTFE/RPTFE/Vinyl Softgoods, Lead-Free

Product Details

MAS™ Ball Valve, G Series, 3/8 in Nominal, NPT Connection, Full Port, 2000 psi, Gas, Oil, Water Media, 2.197 in Inlet to Outlet Length, 1.98 in Top to Inlet Center, 0.378 in Opening, Locking Lever Handle Operator, 7 Cv Flow Coefficient (Cv), Material Standard: ASTM A276 Type 316, ASTM A351 Grade CF8M, Stainless Steel Body, RPTFE Seat, 316 Stainless Steel Stem, PTFE Packing, 304 Stainless Steel Handle, Stainless Steel Ball, PTFE/RPTFE/Vinyl Softgoods, Lead-Free

Attributes

Clearance Items: Clearance
Connection Type: NPT
Inlet to Outlet Length: 2.197 in
Nominal Size: 3/8 in
Operator Type: Locking Lever Handle
Pressure Rating: 2000 psi
Ball Material: Stainless Steel
Body Material: Stainless Steel
Flow Coefficient (Cv): 7 Cv
Handle Material: 304 Stainless Steel
Lead-Free/Contains Lead: Lead-Free
Material Standard: ASTM A276 Type 316, ASTM A351 Grade CF8M
Media: Gas, Oil, Water
Opening Size: .378 in
Packing Material: PTFE
Port Type: Full
Seat Material: RPTFE
Series: G Series
Softgoods Material: PTFE/RPTFE/Vinyl
Stem Material: 316 Stainless Steel
Top to Inlet Center: 1.98 in

Features

  • Floating ball
  • Blowout-proof stem design
  • Adjustable packing nut
  • Actuator-mounting pad

Resources

Specification Sheet
