RED-WHITE 003-11407 1-1/2 FLG GATE VLV 205A
MFR Part #: 205A-1-1/2
SKU #: 0541023
Brand: MAS™
UPC: 620689205086

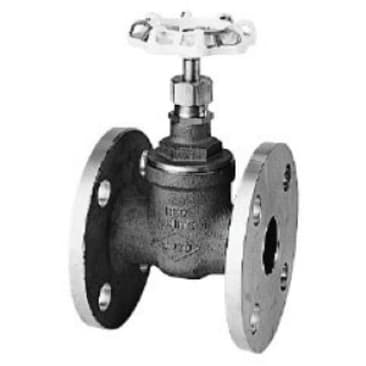

RED-WHITE TOYO 205A-1-1/2 Gate Valve, 1-1/2 in, Flanged, Bronze, 200 psi
ASME B16.24 Specified | MSS-SP-80 Compliant
Product Details
Attributes
Features
Resources
RED-WHITE TOYO Gate Valve, 1-1/2 in Nominal, Flanged Connection, 200 psi, Pressure Class: 150, Gas, Oil, Steam, Water Media, 120 mm Inlet to Outlet Length, 165 mm Top to Inlet Center, Bronze Body, Brass Stem, Bronze Disc, Bronze Trim, Graphite Packing, Aluminum/Ductile Iron/Zinc Handle, Hand Wheel Operator, 120 deg C
Body Material:
Bronze
Connection Type:
Flanged
Nominal Size:
1-1/2 in
Pressure Class:
150
Pressure Rating:
200 psi
Disc Material:
Bronze
Handle Material:
Aluminium/Ductile Iron/Zinc
Inlet to Outlet Length:
120 mm
Media:
Gas, Oil, Steam, Water
Model:
205A
Operator Type:
Hand Wheel
Packing Material:
Graphite
Stem Material:
Brass
Temperature Rating:
120 deg C
Top to Inlet Center:
165 mm
Trim Material:
Bronze
- Non-rising stem
- Screwed bonnet
- Inside screw
Product Details
RED-WHITE TOYO Gate Valve, 1-1/2 in Nominal, Flanged Connection, 200 psi, Pressure Class: 150, Gas, Oil, Steam, Water Media, 120 mm Inlet to Outlet Length, 165 mm Top to Inlet Center, Bronze Body, Brass Stem, Bronze Disc, Bronze Trim, Graphite Packing, Aluminum/Ductile Iron/Zinc Handle, Hand Wheel Operator, 120 deg C
Attributes
Body Material: Bronze
Connection Type: Flanged
Nominal Size: 1-1/2 in
Pressure Class: 150
Pressure Rating: 200 psi
Disc Material: Bronze
Handle Material: Aluminium/Ductile Iron/Zinc
Inlet to Outlet Length: 120 mm
Media: Gas, Oil, Steam, Water
Model: 205A
Operator Type: Hand Wheel
Packing Material: Graphite
Stem Material: Brass
Temperature Rating: 120 deg C
Top to Inlet Center: 165 mm
Trim Material: Bronze
Features
- Non-rising stem
- Screwed bonnet
- Inside screw
