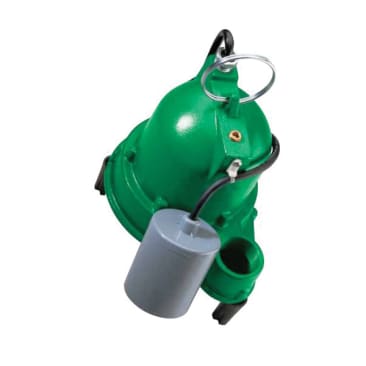

HYDROMATIC SHEF30A1 20 3/10HP SUMP PUMP 20FT CORD

Name: HYDROMATIC SHEF30A1 20 3/10HP SUMP PUMP 20FT CORD
Brand: HYDROMATIC®
SKU: 1008615
Availability: OutOfStock

MFR Part #: SHEF30A1 20

SKU #: 1008615

Brand: HYDROMATIC®

UPC: 400002115809

HYDROMATIC® SHEF30A1 20 High-Head Automatic Submersible Effluent Pump, 35 gpm Flow Rate, 1-1/2 in NPT Outlet, 1 ph, 1/3 hp, Cast Iron

Effluent Septic Tank

cCSAus Certified

Product Details
Attributes
Features
Resources

HYDROMATIC® Submersible Effluent Pump, High-Head Automatic, Series: SHEF, 35 gpm, 1-1/2 in NPT Outlet, 10 ft Maximum Head, 1/3 hp, 115 VAC, 8 A, 60 Hz Frequency, 1 ph ph, 1550 rpm Motor, SJTW Cord, 1 Service Factor, Vortex Impeller, 120 deg F, NEMA A Enclosure, Sleeve/Ball Bearing, Cast Iron, 11-7/8 in OAH Dimensions

Automatic operation features easily adjustable, wide-angle float switch with a piggyback plug-in arrangement that allows for simple conversion to manual operation. Special inlet design allows pump to handle 3/4 in solids. Cast iron body and an oil-filled motor provide superior cooling characteristics for longer pump life. Motor windings contain automatic thermal overload protection. Energy efficient.

Product Details

HYDROMATIC® Submersible Effluent Pump, High-Head Automatic, Series: SHEF, 35 gpm, 1-1/2 in NPT Outlet, 10 ft Maximum Head, 1/3 hp, 115 VAC, 8 A, 60 Hz Frequency, 1 ph ph, 1550 rpm Motor, SJTW Cord, 1 Service Factor, Vortex Impeller, 120 deg F, NEMA A Enclosure, Sleeve/Ball Bearing, Cast Iron, 11-7/8 in OAH Dimensions

Automatic operation features easily adjustable, wide-angle float switch with a piggyback plug-in arrangement that allows for simple conversion to manual operation. Special inlet design allows pump to handle 3/4 in solids. Cast iron body and an oil-filled motor provide superior cooling characteristics for longer pump life. Motor windings contain automatic thermal overload protection. Energy efficient.

Attributes

Flow Rate: 35 gpm

Horsepower: 1/3 hp

Voltage Rating: 115 VAC

Amperage Rating: 8 A

Bearing Type: Sleeve/Ball

Cord Type: SJTW

Dimensions: 11-7/8 in OAH

Enclosure Type: NEMA A

Frequency Rating: 60 Hz

Impeller Type: Vortex

Material: Cast Iron

Maximum Head: 10 ft

Motor Speed: 1550 rpm

Outlet Size: 1-1/2 in NPT

Phase: 1

Series: SHEF

Service Factor: 1

Temperature Rating: 120 deg F

Type: High-Head Automatic

Features

Carbon ceramic mechanical shaft seal
Oil filled motor with automatic reset thermal overload for maximum protection
Engineered thermoplastic impeller
(4) shaded pole motor
Dielectric lubricating oil
18/3, SJTW, 20 ft standard power cord
Stainless steel handle, fasteners, shaft
Cast iron sleeve upper bearing/single row ball lower bearing

Resources

Specification Sheet
