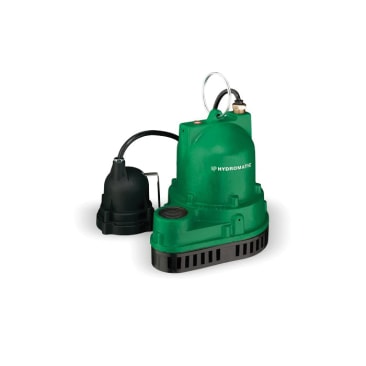

HYDROMATIC DA1 Image 1

HYDROMATIC DA1 10-01 SUMP PUMP 10FT CORD

MFR Part #: DA1
SKU #: 1007346
Brand: HYDROMATIC®
UPC: 400001875964
HYDROMATIC® DA1 Submersible Sump Pump, 48 gpm Flow Rate, 1-1/2 in NPT Outlet, 1 ph, 3/10 hp, Cast Iron, Domestic
3 Years Limited
Basement Sumps, Septic Tank Effluent, Industrial Circulators and Transfer Tanks
CSA 108 | cCSAus Certified | UL 778

HYDROMATIC® Submersible Sump Pump, 48 gpm, 1-1/2 in NPT Outlet, 25 ft Maximum Head, 3/10 hp, 115 VAC, 8 A, 60 Hz Frequency, 1 ph ph, 1550 rpm Motor, SJTW Cord, 1 Service Factor, Vortex Impeller, 120 deg F, NEMA A Enclosure, Cast Iron, 10-5/8 in OAH Dimensions, Domestic

Automatic operation features wide-angle float switch (W-A1), or HYDROMATIC® exclusive pressure diaphragm switch (D-A1) or HYDROMATIC® vertical, mechanical float switch (V-A1). All switches feature a piggyback plug-in arrangement that allows for simple conversion to manual operation. Cast iron body and an oil-filled motor provide superior cooling characteristics for longer pump life. Motor windings contain automatic thermal overload protection.

Product Details

HYDROMATIC® Submersible Sump Pump, 48 gpm, 1-1/2 in NPT Outlet, 25 ft Maximum Head, 3/10 hp, 115 VAC, 8 A, 60 Hz Frequency, 1 ph ph, 1550 rpm Motor, SJTW Cord, 1 Service Factor, Vortex Impeller, 120 deg F, NEMA A Enclosure, Cast Iron, 10-5/8 in OAH Dimensions, Domestic

Automatic operation features wide-angle float switch (W-A1), or HYDROMATIC® exclusive pressure diaphragm switch (D-A1) or HYDROMATIC® vertical, mechanical float switch (V-A1). All switches feature a piggyback plug-in arrangement that allows for simple conversion to manual operation. Cast iron body and an oil-filled motor provide superior cooling characteristics for longer pump life. Motor windings contain automatic thermal overload protection.

Attributes

Amperage Rating: 8 A
Cord Type: SJTW
Country Of Origin: US
Dimensions: 10-5/8 in OAH
Domestic/Import: Domestic
Enclosure Type: NEMA A
Flow Rate: 48 gpm
Frequency Rating: 60 Hz
Horsepower: 3/10 hp
Impeller Type: Vortex
Material: Cast Iron
Maximum Head: 25 ft
Motor Speed: 1550 rpm
Outlet Size: 1-1/2 in NPT
Phase: 1
Service Factor: 1
Temperature Rating: 120 deg F
Voltage Rating: 115 VAC

Features

  • Uses carbon ceramic mechanical shaft seal
  • Single row ball-bearing construction
  • Oil filled motor with automatic reset thermal overload protection
  • Piggyback electrical plug for easy maintenance and replacement
  • Shaded pole motor
  • 38 gpm flow at 10 ft lift
  • 12 in Dia sump (diaphragm or vertical switch, 18 in Dia sump
  • 1/2 in max solid handling capacity

Resources

Specification Sheet
