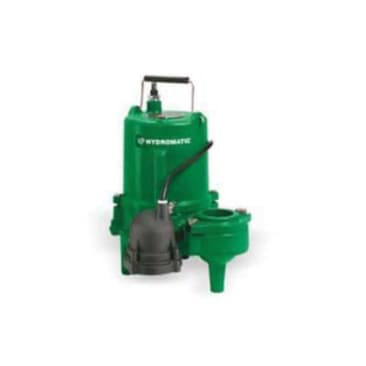

HYDROMATIC SPD50AH2 20 1/2HP SUMP PUMP 20FT CORD
Product Details
Attributes
Features
Resources
Hydromatic Automatic Submersible Sump Pump, Series: SPD, 230 V, 7 A, 60 Hz, 1/2 hp, 3450 rpm Speed, 104 gpm, 112 gpm Flow Rate, 1 ph, 2 in Discharge, 20 ft Cord, 50 ft Maximum Feet of Head, Ball Bearing, 140 deg F, Cast Iron Impeller, Cast Iron, 14-7/8 in H
The Hydromatic® SPD50H/100H submersible pumps are specifically designed to meet the demands of septic tank effluent applications that require a high-head, dual-seal pump. The SPD50H has a powerful 1/2 hp motor, while the SPD100H comes with a 1 hp motor. Both pumps are standard 2 in NPT discharge pumps, with 3 in versions optional and available in automatic and manual configurations. The SPD50H can handle capacities up to 110 gpm and heads to 50 ft, while the SPD100H handles capacities up to 140 gpm and heads to 63 ft.
- Specifically designed to meet the demands of septic tank effluent applications that require a high head dual seal pump
- (2) carbon/ceramic-type 21 mechanical seals-mounted in tandem
- Oil-filled motor with automatic reset thermal overload for maximum protection (1 ph models)
- Upper and lower ball bearing construction
- Optional seal failure probe warns of seal leak
- Capacitor start for increased starting torque (1 ph models)
- Steel handle, cast iron base, stainless steel fasteners and shaft, carbon/ceramic seal face, brass seal body, stainless steel spring, Buna-n bellows
- Heavy-duty
Product Details
Hydromatic Automatic Submersible Sump Pump, Series: SPD, 230 V, 7 A, 60 Hz, 1/2 hp, 3450 rpm Speed, 104 gpm, 112 gpm Flow Rate, 1 ph, 2 in Discharge, 20 ft Cord, 50 ft Maximum Feet of Head, Ball Bearing, 140 deg F, Cast Iron Impeller, Cast Iron, 14-7/8 in H
The Hydromatic® SPD50H/100H submersible pumps are specifically designed to meet the demands of septic tank effluent applications that require a high-head, dual-seal pump. The SPD50H has a powerful 1/2 hp motor, while the SPD100H comes with a 1 hp motor. Both pumps are standard 2 in NPT discharge pumps, with 3 in versions optional and available in automatic and manual configurations. The SPD50H can handle capacities up to 110 gpm and heads to 50 ft, while the SPD100H handles capacities up to 140 gpm and heads to 63 ft.
Attributes
Features
- Specifically designed to meet the demands of septic tank effluent applications that require a high head dual seal pump
- (2) carbon/ceramic-type 21 mechanical seals-mounted in tandem
- Oil-filled motor with automatic reset thermal overload for maximum protection (1 ph models)
- Upper and lower ball bearing construction
- Optional seal failure probe warns of seal leak
- Capacitor start for increased starting torque (1 ph models)
- Steel handle, cast iron base, stainless steel fasteners and shaft, carbon/ceramic seal face, brass seal body, stainless steel spring, Buna-n bellows
- Heavy-duty
