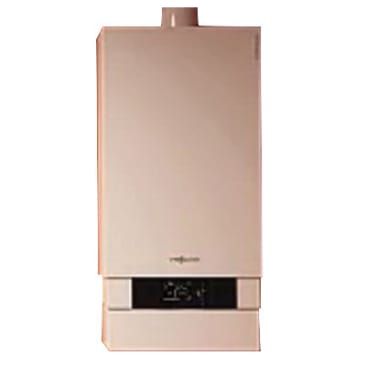

VIESSMANN B2HAA58 VITODEN 200 CONDENSING BOILER B2HA-399
Product Details
Attributes
Features
Resources
VIESSMANN® Water Boiler, B2HA Series, 120 VAC, <12 A, 33 to 117 kW Input, 95 kW Net Rating Power, 60 Hz Frequency, 93% Thermal, 93.5% Combustion AFUE, 113 to 399 MBtu/hr BTU, 4 gal Capacity, 37.9 gpm Flow Rate, 2 in MNPT Supply/Return, 3/4 in Male Thread Drain Connection, Liquid Propane Gas, Natural Gas Fuel, Coaxial Vent, Chimney/Breeching/Vent Size: 180 ft Maximum Vent L, Net BTU Rating: 323000 Btu/hr, Noise Rating: 40 to 57 dBA Input, 36.78 sq-ft Heat Exchanger Area, Wall Mounting, Steel, Dimensions: 44.5 in H x 23.625 in W x 27.1 in D
- Equipped with the industry's first intelligent combustion management system and powerful control technology
- Best value in its class with new industry leading technology and the most standard features
- Lasting performance with industry-leading Viessmann made SA240 316 Ti stainless steel inox-radial heat exchanger constructed to CSA B51 and ASME section IV
- Low emission combustion with Viessmann made stainless steel MatriX cylinder burner, factory calibrated
- Fast installation and reduced maintenance with Lambda Pro, industry-first intelligent combustion management system
- Adjusts automatically to gas type and quality, no fuel conversion kit required
- Viessmann Vitotronic on-board multi-function outdoor reset boiler and system control for multi-temperature space and DHW heating makes it powerful and user-friendly
- Greater venting flexibility with increased vent length
- Compact, esthetic product design and zero clearance to combustibles
- Extremely quiet operation, quieter than most refrigerators
- True high-altitude operation up to 10000 ft with simple electronic adjustment
- 14 in WC maximum gas supply pressure
- 45 lbf/sq-in maximum operating pressure at 210 deg F
- 30 lb/sq-in pressure relief valve
- Temperature and pressure gauge (unmounted)
- 1 in NPTF gas valve connection
- 4-3/8 in flue gas connection
