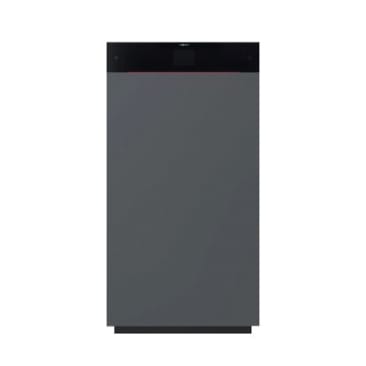

VIESSMANN ZK06780 VITOCROSSAL CI2750 750MBH BOILER NG/LP

VIESSMANN® Vitocrossal 200 Gas Fired Boiler, Model: CI2, 120 V, 20 A, 492 W Power, 60 Hz Frequency, 1 ph, 96.9 % AFUE, 75 to 750 mbh BTU, 50 gal Capacity, 80 psi Pressure, Flange Connection, LPG, Natural Gas Fuel, Direct Vent, MatriX Cylinder Burner, 6 in Flue Outlet, Net BTU Rating: 734 mbh, Number of Boilers: 16, 129.4 sq-ft Area, Wall Mounting, Stainless Steel, 210 deg F, Dimensions: 47-1/4 in L x 29-1/2 in W x 64-1/2 in H

Vitocrossal 200 CI2 is a floor standing gas condensing boiler with modulating MatriX cylinder burner and stainless steel Inox-Crossal heat exchanger. Rated input - 399 to 2000 mbh. The Vitocrossal 200 CI2 is a versatile boiler system offering a highly efficient solution for custom residential, as well as various commercial applications. With six sizes ranging from 399 to 2000 mbh, this gas condensing unit can be cascaded for capacities up to 32000 mbh. The Vitocrossal 200 CI2 is only 27 in wide without casing, fitting through any standard door, providing ease of access for retrofit applications and is particularly recommended for modernization. Compact dimensions facilitate the replacement of old systems even in tight spaces, requiring a footprint of less than 9.9 sq-ft. The new Vitocrossal 200 CI2 is a contractor's dream with integrated installation features for peak mobility and unprecedented power density ratio allowing for optimal side by side installation even in the tightest spaces. A redesigned combustion chamber provides the same reliability and efficiency while reducing overall size by over 30%, yet still maintaining class leading water volume and low pressure drop. Fast installation and reduced maintenance come standard with the integrated Lambda PrO2 self-calibrating active O2 trim control management system to ensure consistently high and efficient combustion quality with low emissions. Lambda PrO2 with O2 trim technology automatically adjusts to multiple vent options and lengths, gas type and quality right out of the box, no calibration required. The VIESSMANN®® made modulating MatriX cylinder burner offers extremely clean combustion with up to a 30:1 turn down ratio and meets low NOX requirements. Highest water volume in class means no primary boiler pump is required.
