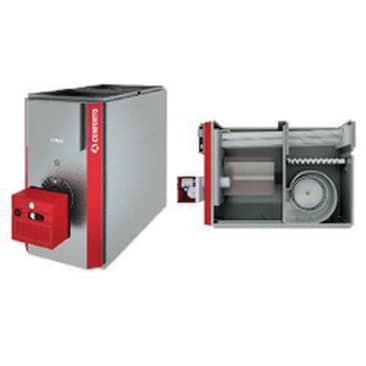

GRANBY KLR-00-G200-05 OIL FURNACE UP TO 139K BTU
MFR Part #: KLR-00-G200-05
SKU #: 1180924
Brand: GRANBY®
UPC: 400008697767
GRANBY KLR-00-G200-05 Conforto Oil Furnace, 19000 to 161000 Btu/hr Input, 1230 cfm, 1/2 hp, 87 % AFUE
C/US ETL Listed, Energy Star Certified
Product Details
Attributes
Features
Resources
GRANBY® Conforto Oil Furnace, Series: KLR, 1/2 hp, 19000 - 161000 Btu/hr Input BTU Rating, 102000 - 139000 Btu/hr Output BTU Rating, 1230 cu-ft/min, 87 % AFUE, 5-Speed ECM Motor, 33 in H x 21-1/2 in W x 49-1/8 in D
AFUE Rating:
87 %
CFM Rating:
1230 cfm
Dimensions:
21-1/2 in W x 49-1/8 in D x 33 in H
HP Rating:
1/2 hp
Input BTU Rating:
19000 to 161000 Btu/hr
Motor Type:
5-Speed ECM
Output BTU Rating:
102000 to 139000 Btu/hr
Series:
KLR
- Robust and durable combustion chamber
- 100% welded one-piece heat exchanger, no bolts and fasteners
- Provided with stainless steel baffles to maximize heat transfer from the heat exchanger
- The tubular design of the secondary heat exchanger provides a quiet and maximum thermal exchange
- Due to their low restriction to the circulating air, these appliances are compatible with today's high efficiency heat pumps or air conditioning systems
- Safe and easy-to-use electronic control
- Provides on-board connections for optional electronic air cleaner and humidifier
- On-board connections for A/C systems
- Offered with high static pressure burners that offer a better control of the combustion excess air allowing for a cleaner and more efficient combustion
- High efficiency blower
- Front breach
Product Details
GRANBY® Conforto Oil Furnace, Series: KLR, 1/2 hp, 19000 - 161000 Btu/hr Input BTU Rating, 102000 - 139000 Btu/hr Output BTU Rating, 1230 cu-ft/min, 87 % AFUE, 5-Speed ECM Motor, 33 in H x 21-1/2 in W x 49-1/8 in D
Attributes
AFUE Rating: 87 %
CFM Rating: 1230 cfm
Dimensions: 21-1/2 in W x 49-1/8 in D x 33 in H
HP Rating: 1/2 hp
Input BTU Rating: 19000 to 161000 Btu/hr
Motor Type: 5-Speed ECM
Output BTU Rating: 102000 to 139000 Btu/hr
Series: KLR
Features
- Robust and durable combustion chamber
- 100% welded one-piece heat exchanger, no bolts and fasteners
- Provided with stainless steel baffles to maximize heat transfer from the heat exchanger
- The tubular design of the secondary heat exchanger provides a quiet and maximum thermal exchange
- Due to their low restriction to the circulating air, these appliances are compatible with today's high efficiency heat pumps or air conditioning systems
- Safe and easy-to-use electronic control
- Provides on-board connections for optional electronic air cleaner and humidifier
- On-board connections for A/C systems
- Offered with high static pressure burners that offer a better control of the combustion excess air allowing for a cleaner and more efficient combustion
- High efficiency blower
- Front breach
