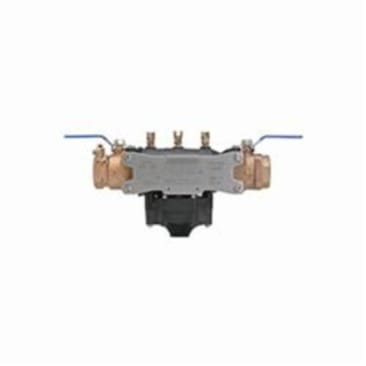

WILKINS 375 1 Image 1

WILKINS 1-375 1 REDUCED PRESSURE PRINCIPLE ASSY

MFR Part #: 375 1
SKU #: 1038881
Brand: Zurn® | Wilkins
UPC: 10612052088508
Zurn® Wilkins 375 1 Backflow Preventer, 1 in Nominal, FNPT End Style, Quarter-Turn Ball Valve, Bronze Body, Reduced Pressure
For installation on water lines to protect against both backsiphonage and backpressure of polluted water into the potable water supply
Approved By The Foundation For Cross-Connection Control And Hydraulic Research At The University Of Southern California | ANSI B1.20.1 | ASSE 1013 | ASTM B584 | AWWA C511 | CSA B64.4 | cUL Listed | IAPMO Listed | UL Listed

Zurn® Wilkins Backflow Preventer, Series: 375, 1 in Nominal, FNPT, 175 psi, 180 deg F, Quarter-Turn Ball Valve Ball Valve/Gate Valve, Reduced Pressure Backflow, Full Port, Bronze Body, 11-3/16 in L

The Zurn® Wilkins 375 Reduced Pressure Principle Backflow Preventer provides high hazard protection for non-potable applications. The innovative EZSwap™ Pressure Vessel is removed and replaced with the Flush Fitting Tool for faster flushing and testing.

Product Details

Zurn® Wilkins Backflow Preventer, Series: 375, 1 in Nominal, FNPT, 175 psi, 180 deg F, Quarter-Turn Ball Valve Ball Valve/Gate Valve, Reduced Pressure Backflow, Full Port, Bronze Body, 11-3/16 in L

The Zurn® Wilkins 375 Reduced Pressure Principle Backflow Preventer provides high hazard protection for non-potable applications. The innovative EZSwap™ Pressure Vessel is removed and replaced with the Flush Fitting Tool for faster flushing and testing.

Attributes

Backflow Type: Reduced Pressure
Connection Type: FNPT
Nominal Size: 1 in
Ball Valve/Gate Valve Type: Quarter-Turn Ball Valve
Body Material: Bronze
Dimensions: 11-3/16 in L
Port Type: Full
Pressure Rating: 175 psi
Series: 375
Temperature Rating: 180 deg F

Features

  • Patented removable pressure vessel
  • Allows for easy repair and winterization
  • Constructed with less Bronze for theft deterrence
  • 350 psi hydrostatic test pressure
  • Cast bronze construction

Resources

Instruction/Installation Manual
Line Drawing
Specification Sheet
